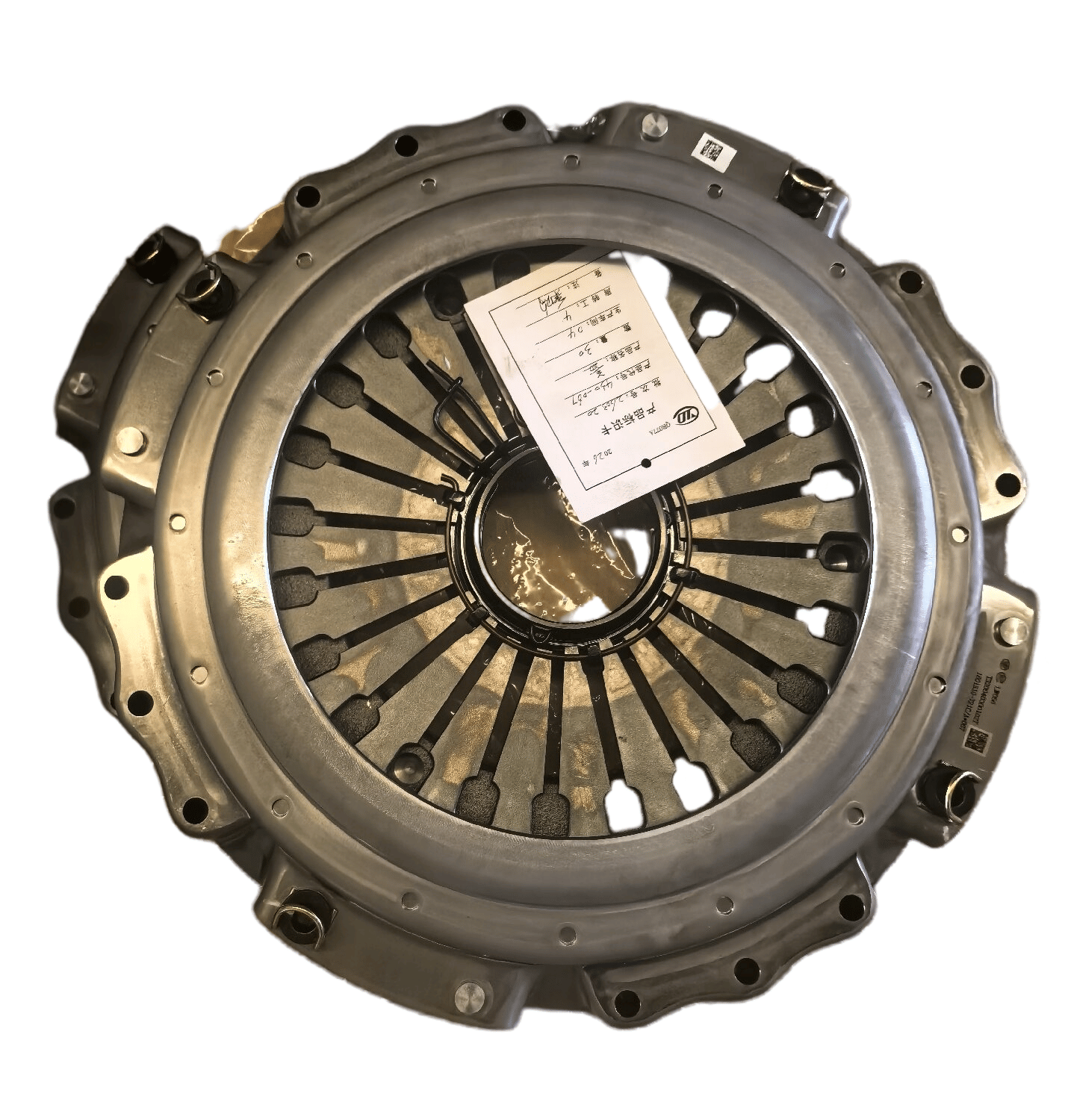

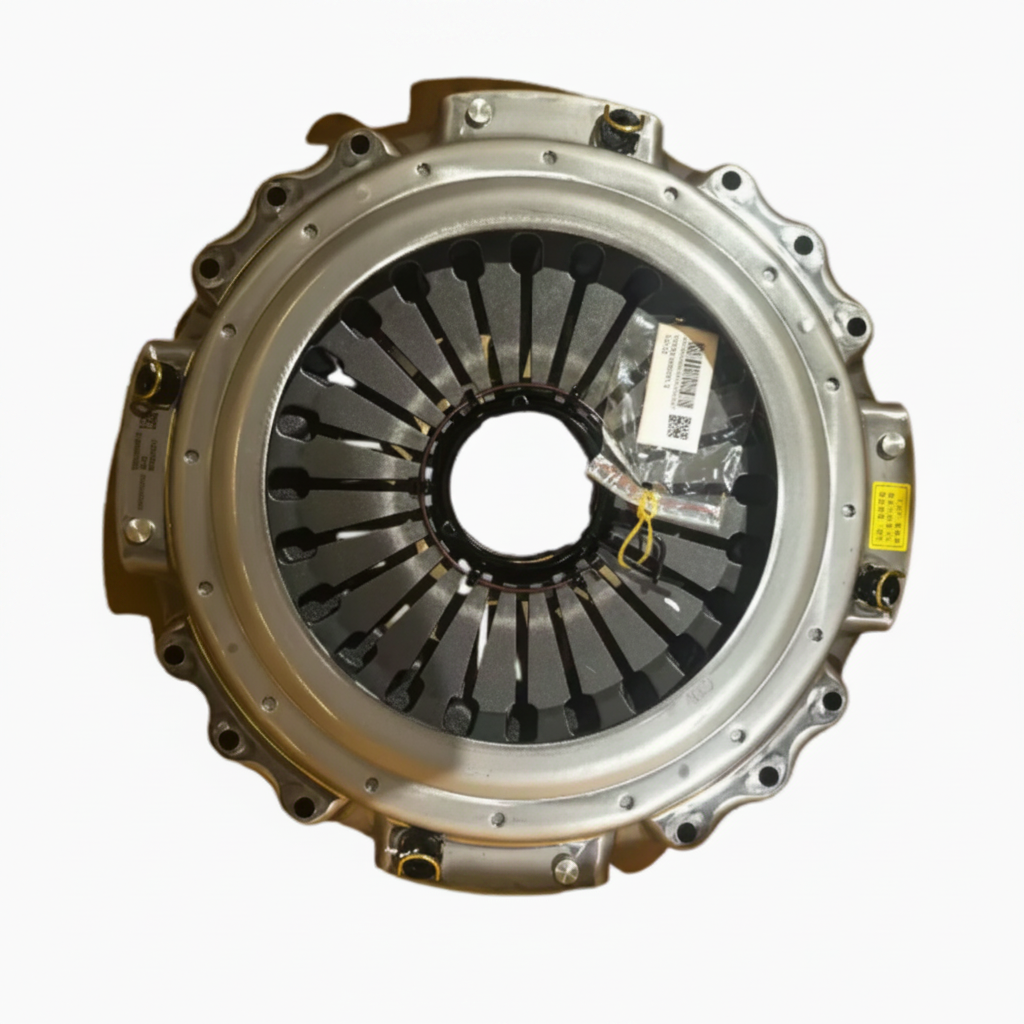

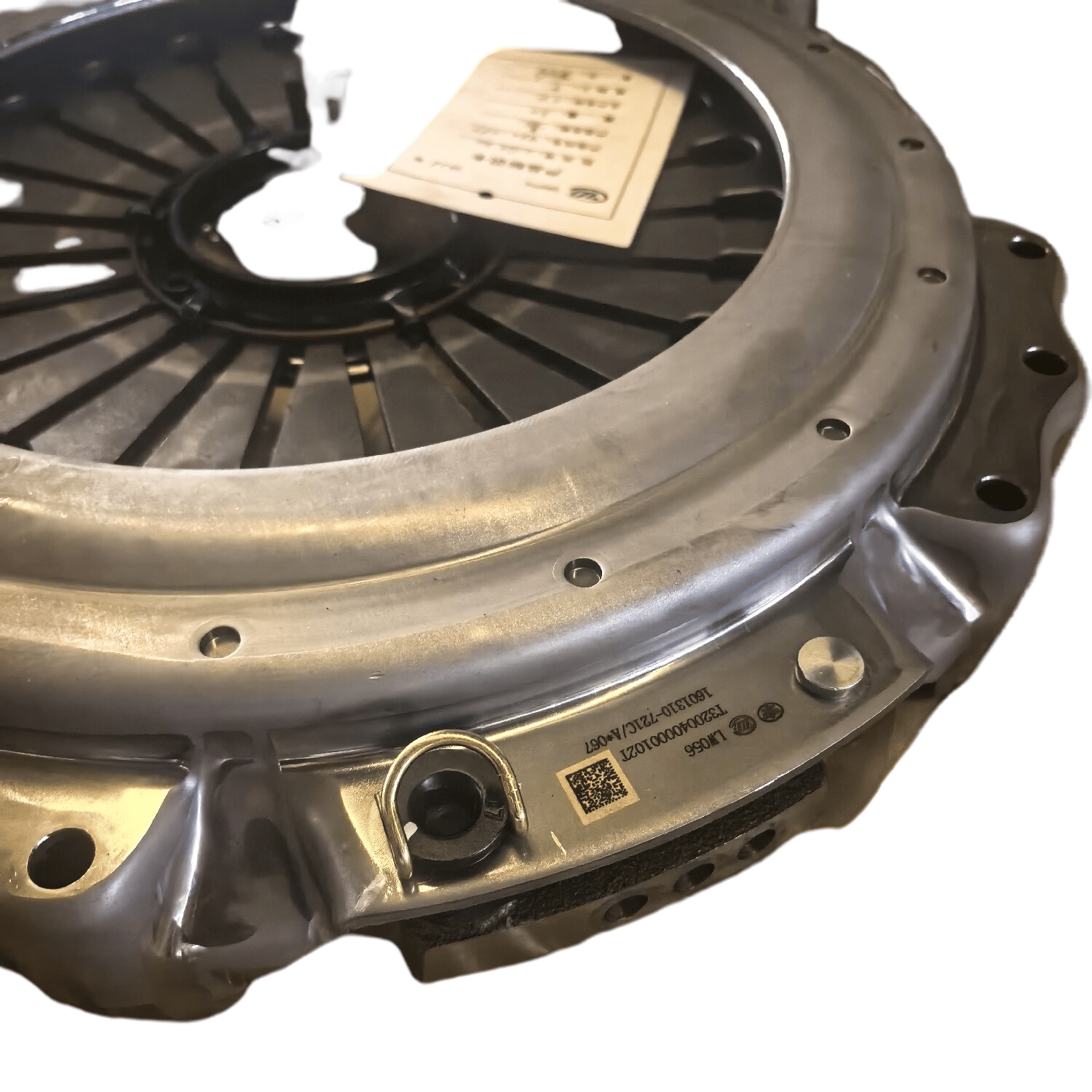

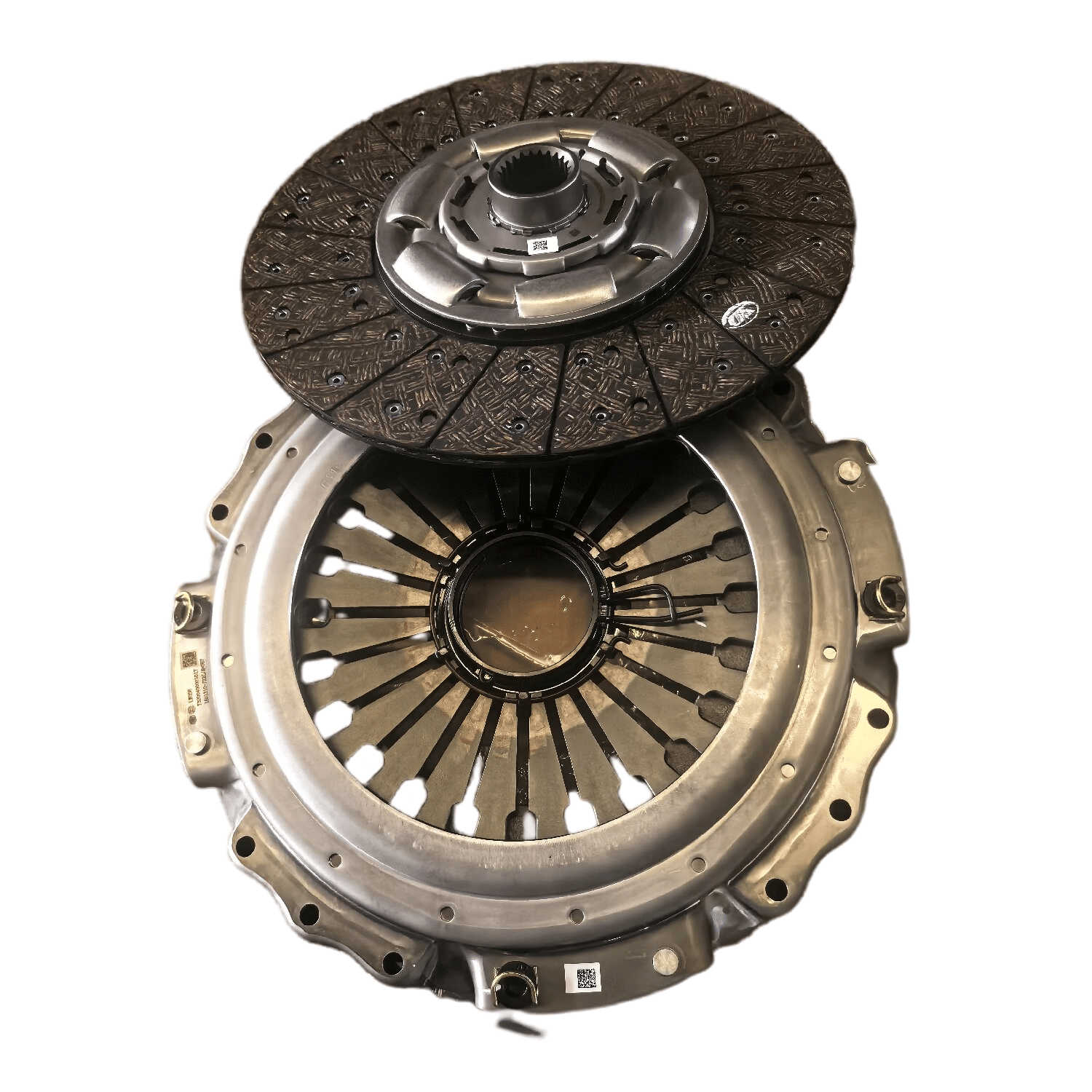

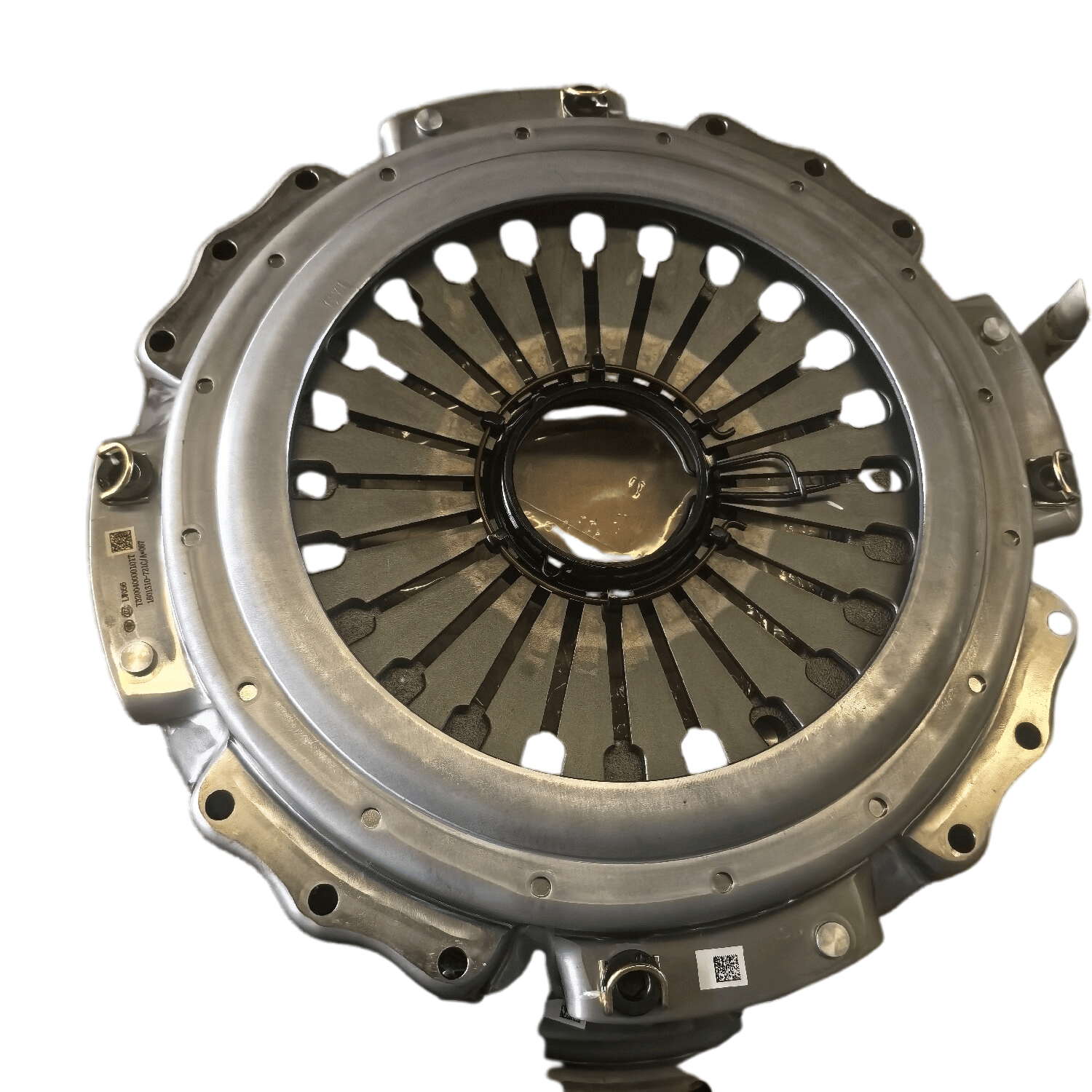

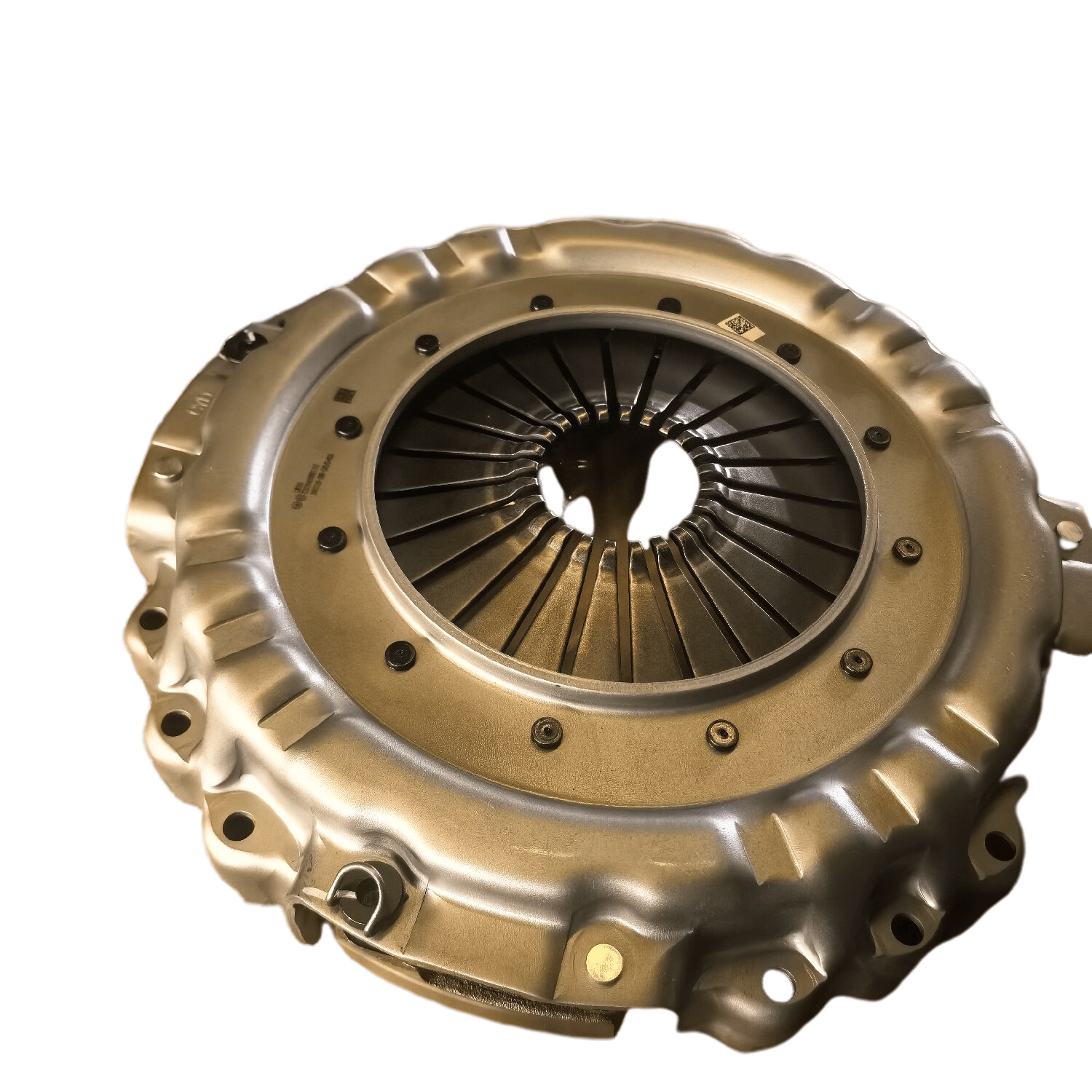

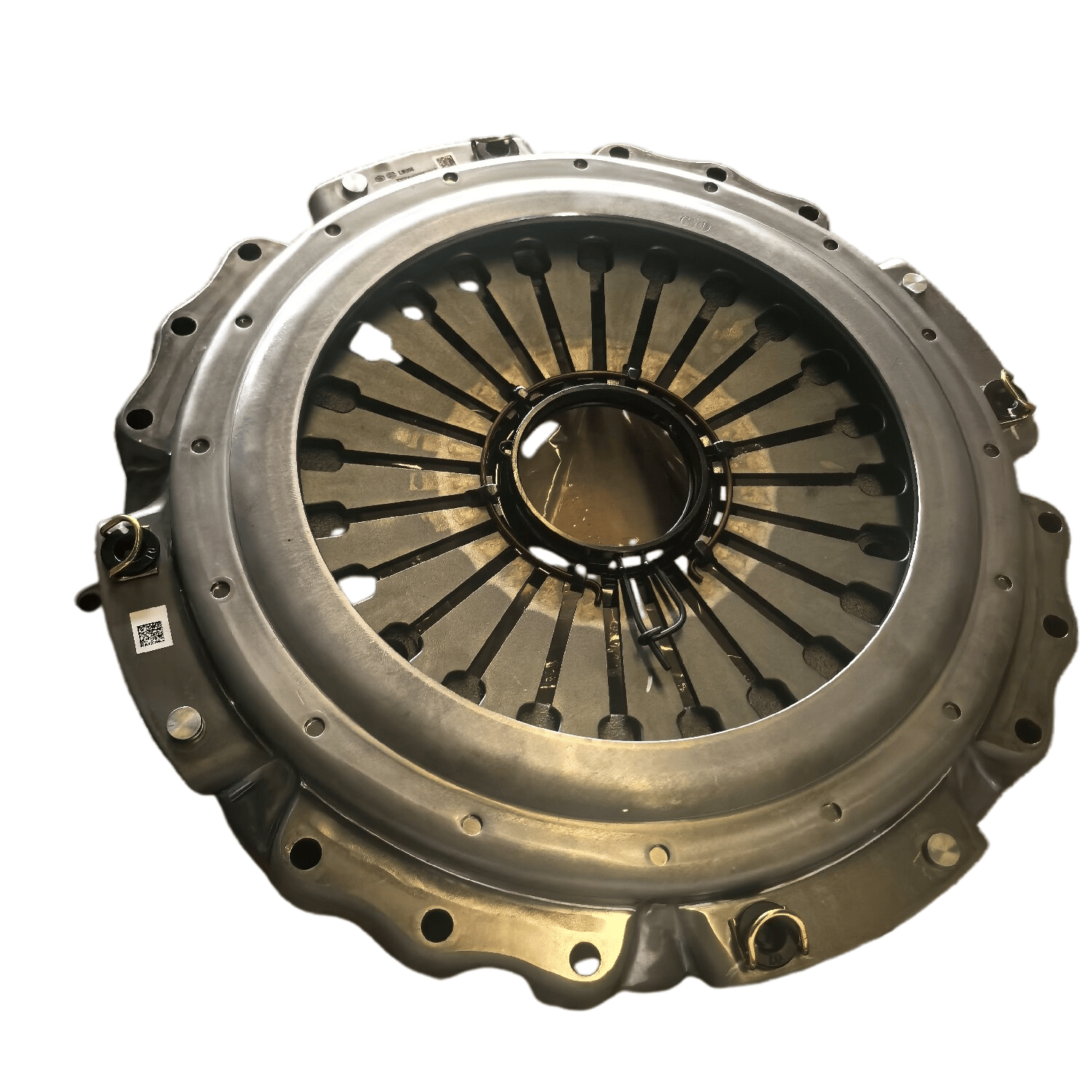

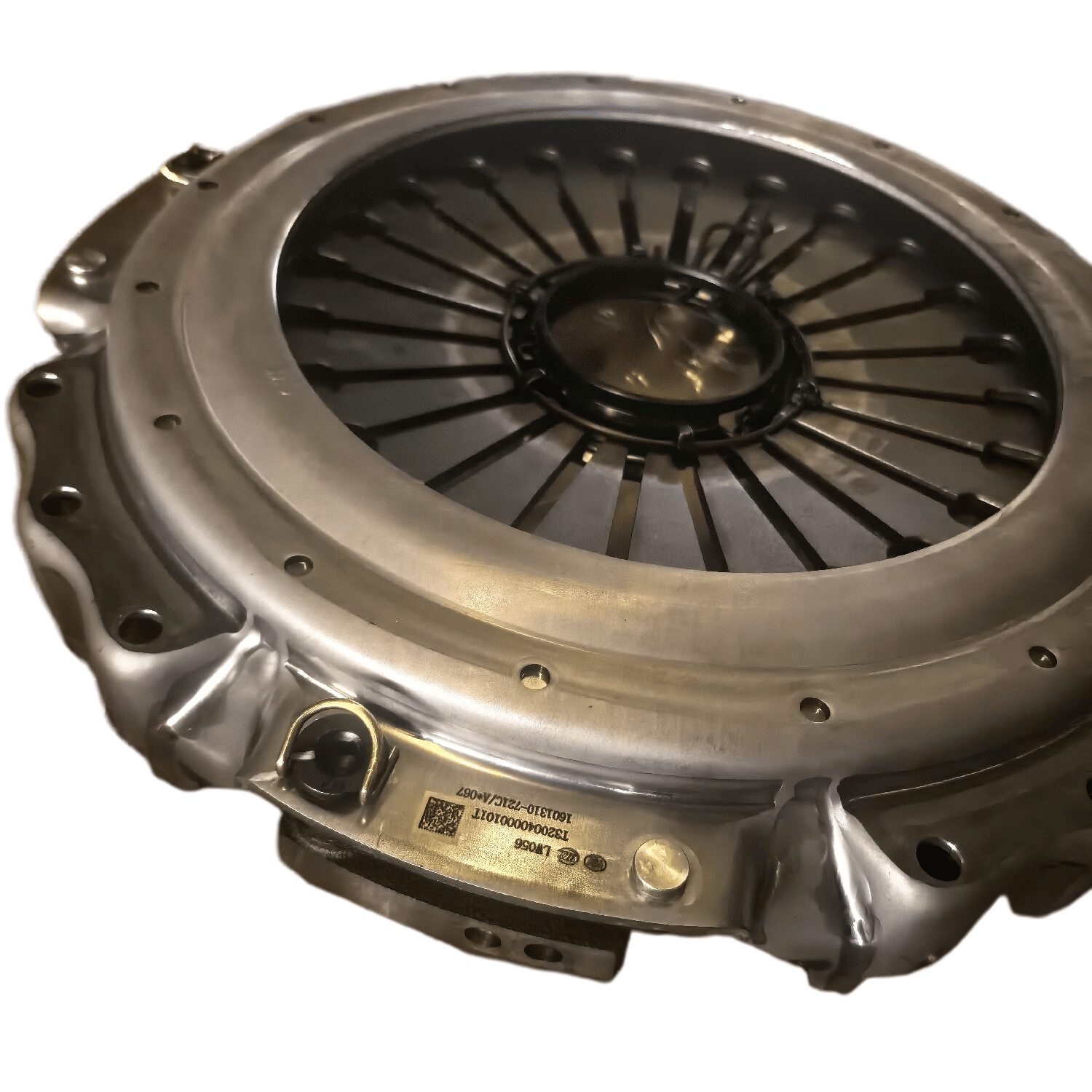

430mm Heavy-duty Commercial Vehicle AMT Clutch Cover Assembly for Volvo

No.YZ952516000001/2

Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Get A Quote

Download

View all downloads

Description

Brief Introduction Of The Product

★ Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Product Feature

• Pull-type structure: featuring a higher lever ratio and a larger lift stroke compared with the push-type structure, it can accommodate higher engine torque.

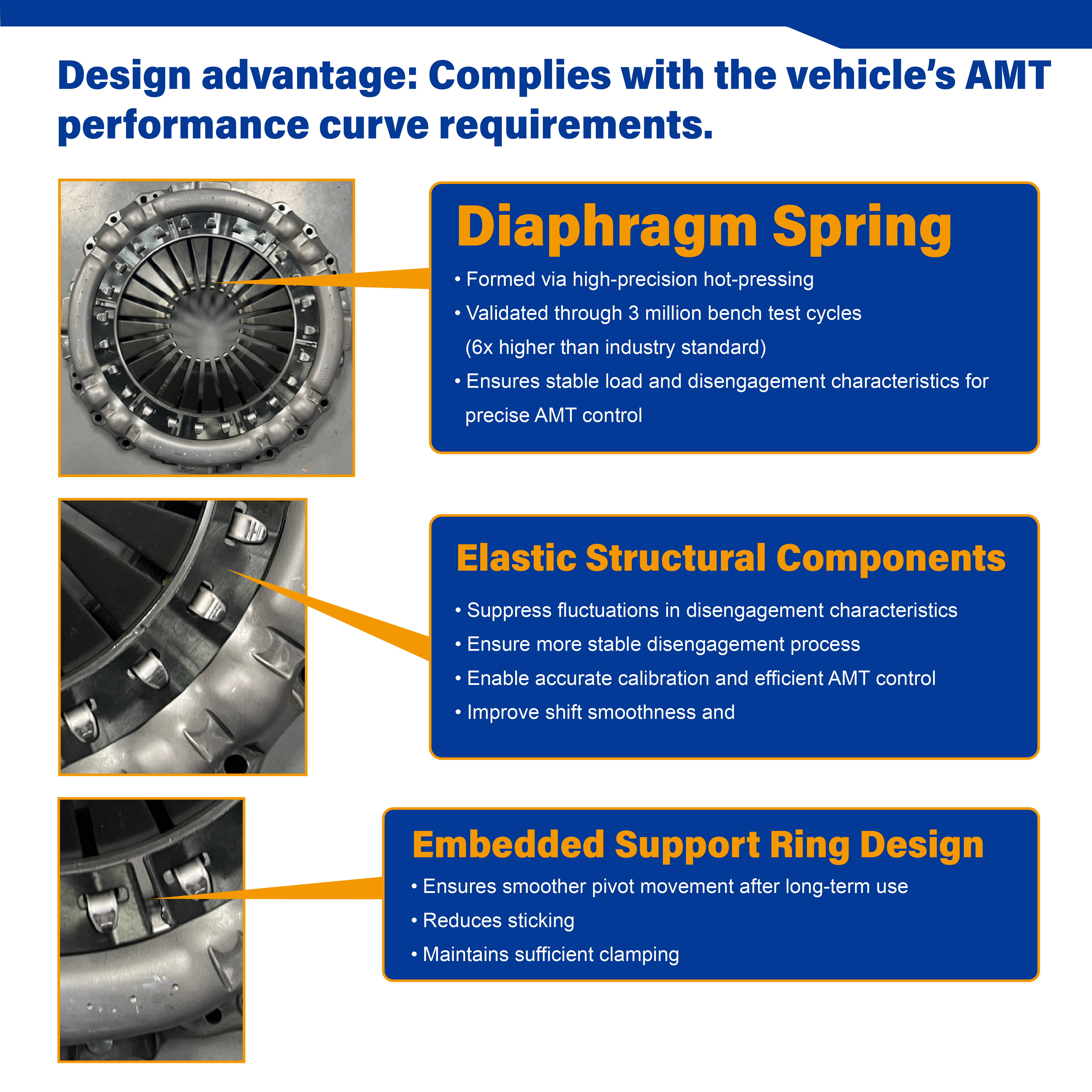

• The diaphragm spring is made of 50CrV4/51CrV4 from Baosteel and Wells, well-known domestic steel mills, and adopts the core heat treatment process of Yidong. It boasts high durability, and can withstand 2 million cycles of high-temperature dynamic disengagement durability tests on the bench without failure.

• The pressure plate is made of HT250 cast iron, adopting a heat dissipation rib structure and a weight-increased design. It has a larger heat capacity than conventional products, which helps reduce the risk of clutch ablation.

• The clutch cover is made of SPHE from Baosteel, a renowned domestic steel mill. It has a lower deflection coefficient and an increased lever ratio compared with traditional ones, which can improve the working clamping force while achieving a design with lower release force.

Specification Parameter

TECHNICAL PARAMETERS
Matching Engine Torque	2200Nm
Clamping Force	39000N min
Release Force	8800N max
Release Finger Working Diameter	Working Diameter：φ120mm
Installation Height	66.6mm
Release Stroke	（12-14）mm
Wear Amount	3mm
Spigot Diameter	φ475mm
Gauge Plate Thickness	10mm
Pressure Plate Inner Diameter	φ432mm
Pressure Plate Outer Diameter	φ240mm
Installation Bolt Step Height	53mm
Maximum Height	82max
Maximum Outer Diameter	φ482mm
