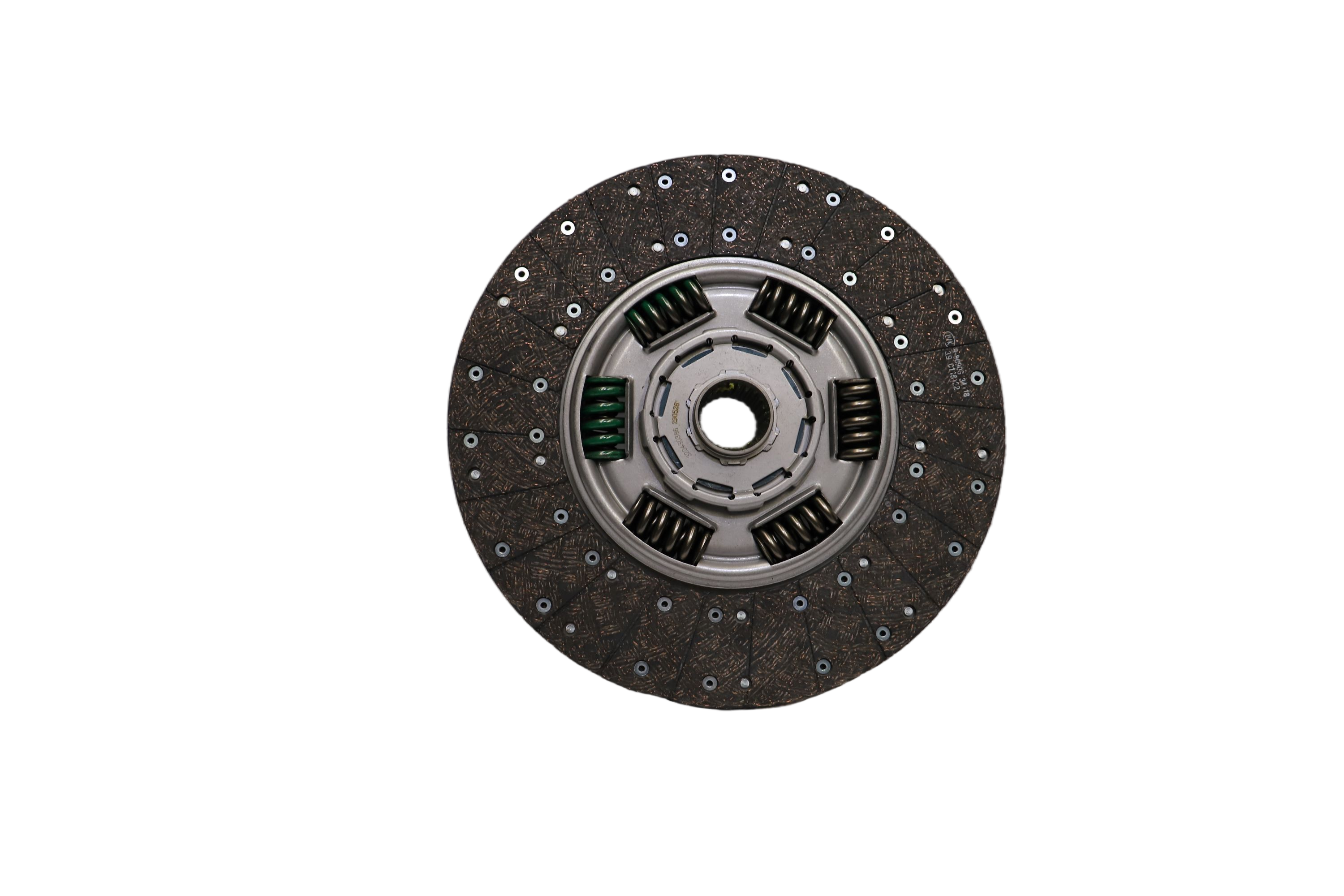

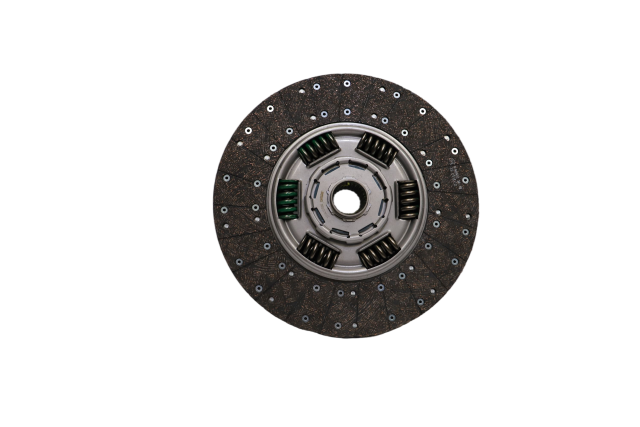

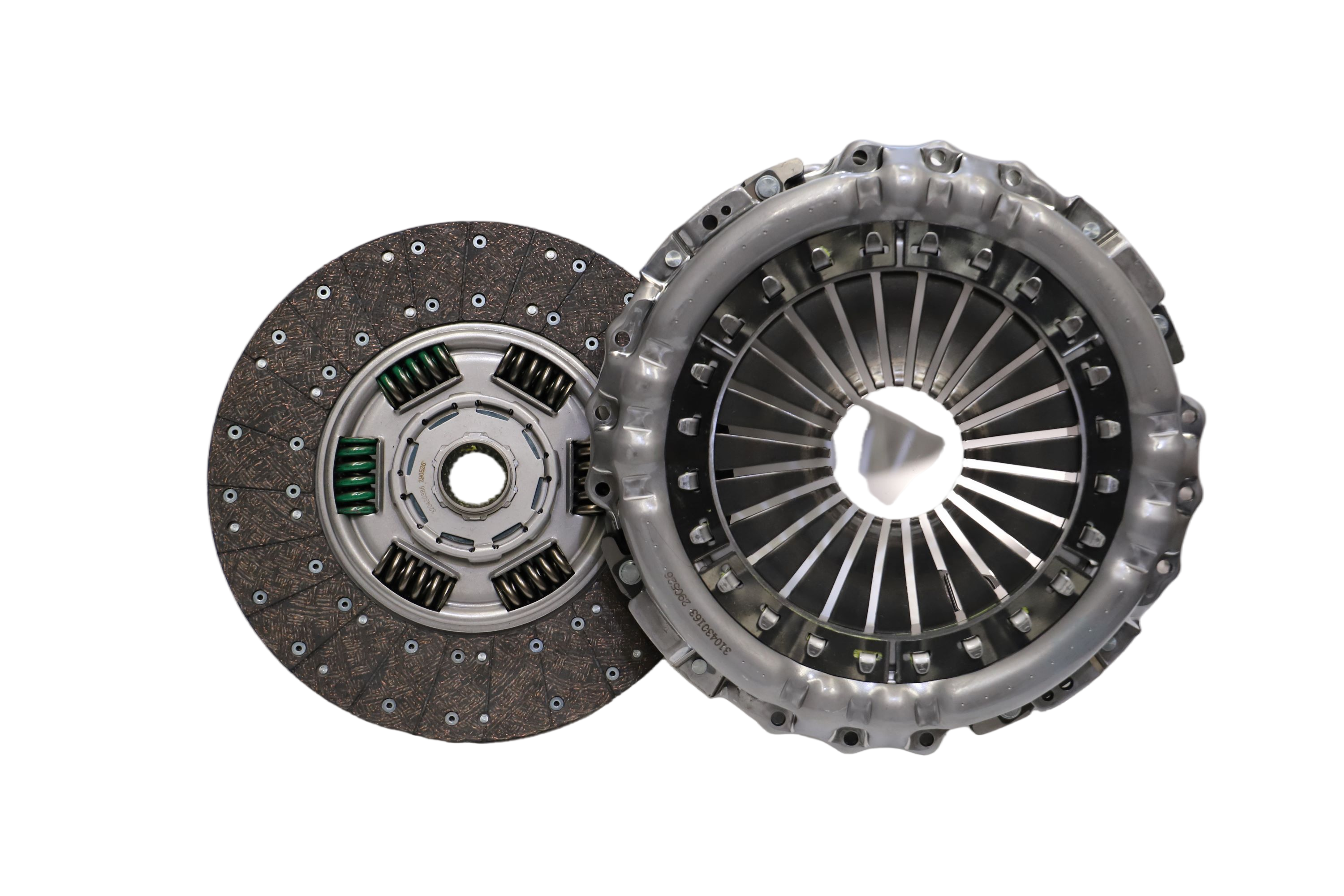

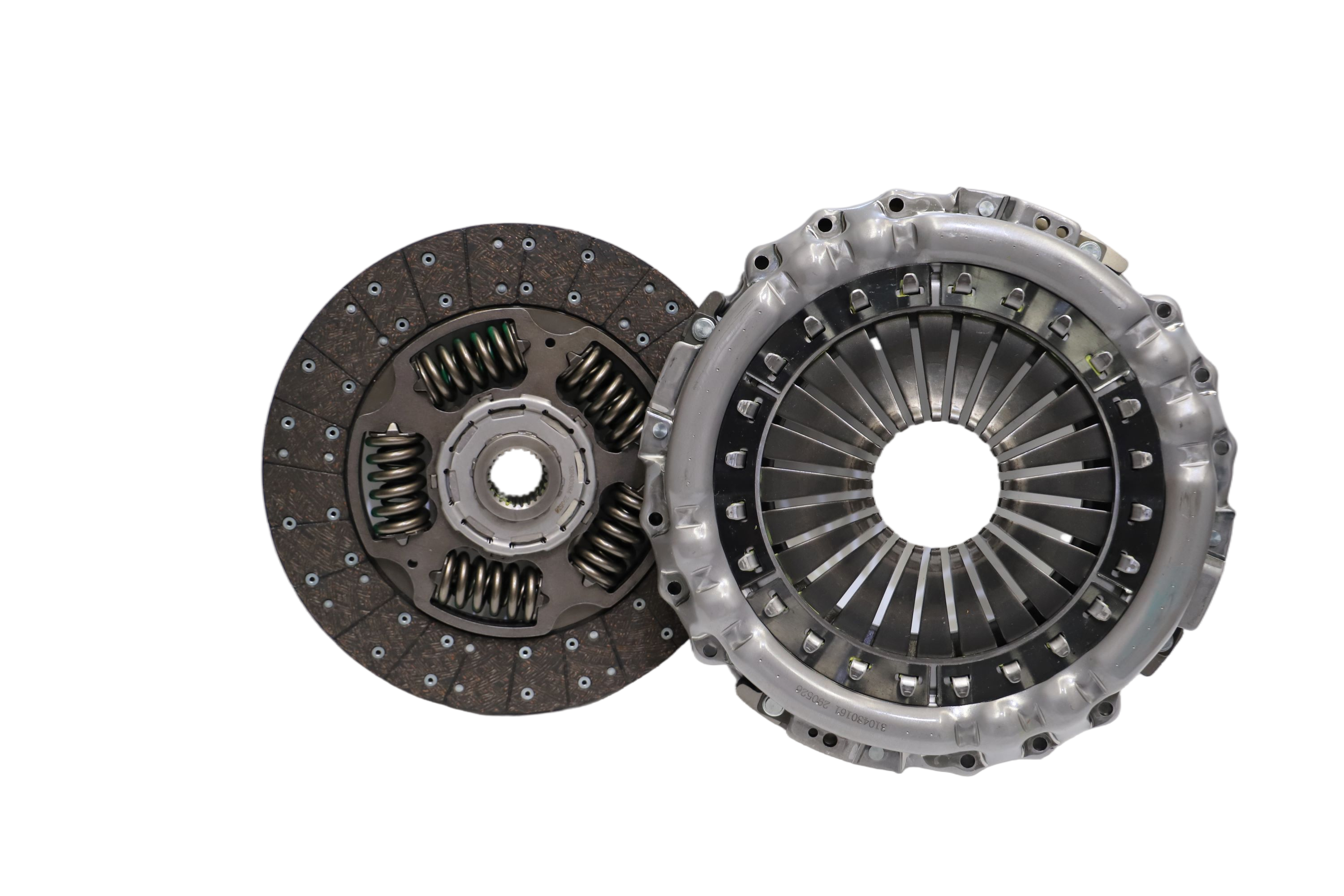

430mm Heavy-duty Commercial Vehicle AMT Clutch Disc Assembly for Volvo

No.YZ952516000002/2

Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Get A Quote

Download

View all downloads

Description

Brief Introduction Of The Product

★ Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Product Feature

★ With pre-damping structure, featuring low stiffness and excellent ride comfort.

★ SWOSC spring steel wire, which can withstand 5 million fatigue test cycles.

★ High-temperature and wear-resistant friction disc material.

★ Inner hub material: Adopting alloy steel with carburizing, high-frequency induction and other heat treatment processes, ensuring the structural strength required for vehicle operation without failure.

★ The drive plate is made of spring steel, with quenching and tempering treatment applied to enhance its structural strength, featuring higher reliability and strength compared with traditional counterparts.

★ The damping plate is made of materials from renowned domestic steel mills including Baosteel, and adopts Yidong's core carbon-nitrogen co-cementation heat treatment process. It features high wear resistance and structural strength, and can withstand 5 million torsion fatigue test cycles on the bench without failure.

Specification Parameter

TECHNICAL PARAMETERS
Matching Engine Torque	2200Nm
Friction Disc Inner Diameter	φ242mm
Friction Disc Outer Diameter	φ430mm
Inner Hub Height	60mm
Limit Torque	3200Nm
Clamping Thickness	10mm
Spline Parameters	3mm
Spigot Diameter	10-tooth rectangular spline
