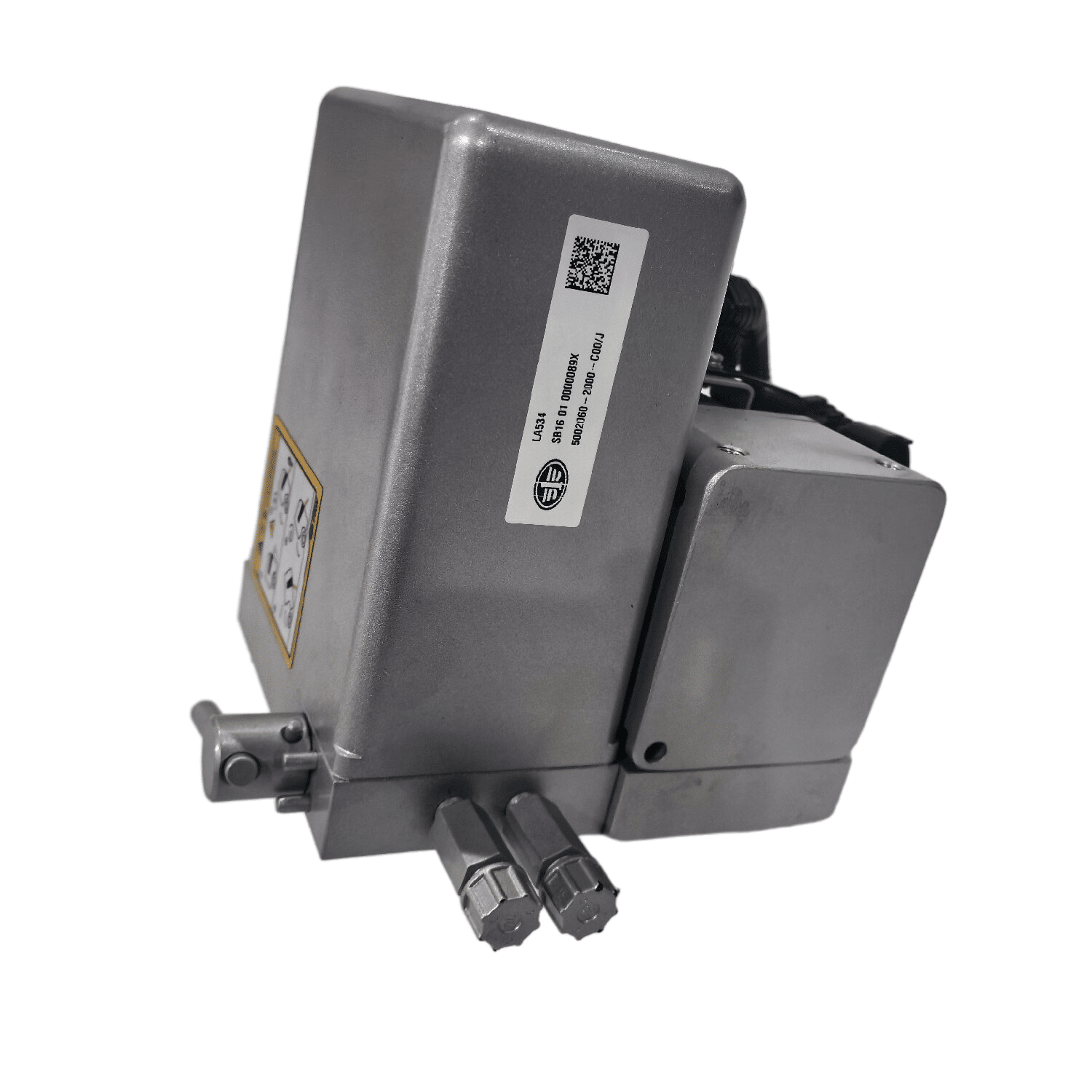

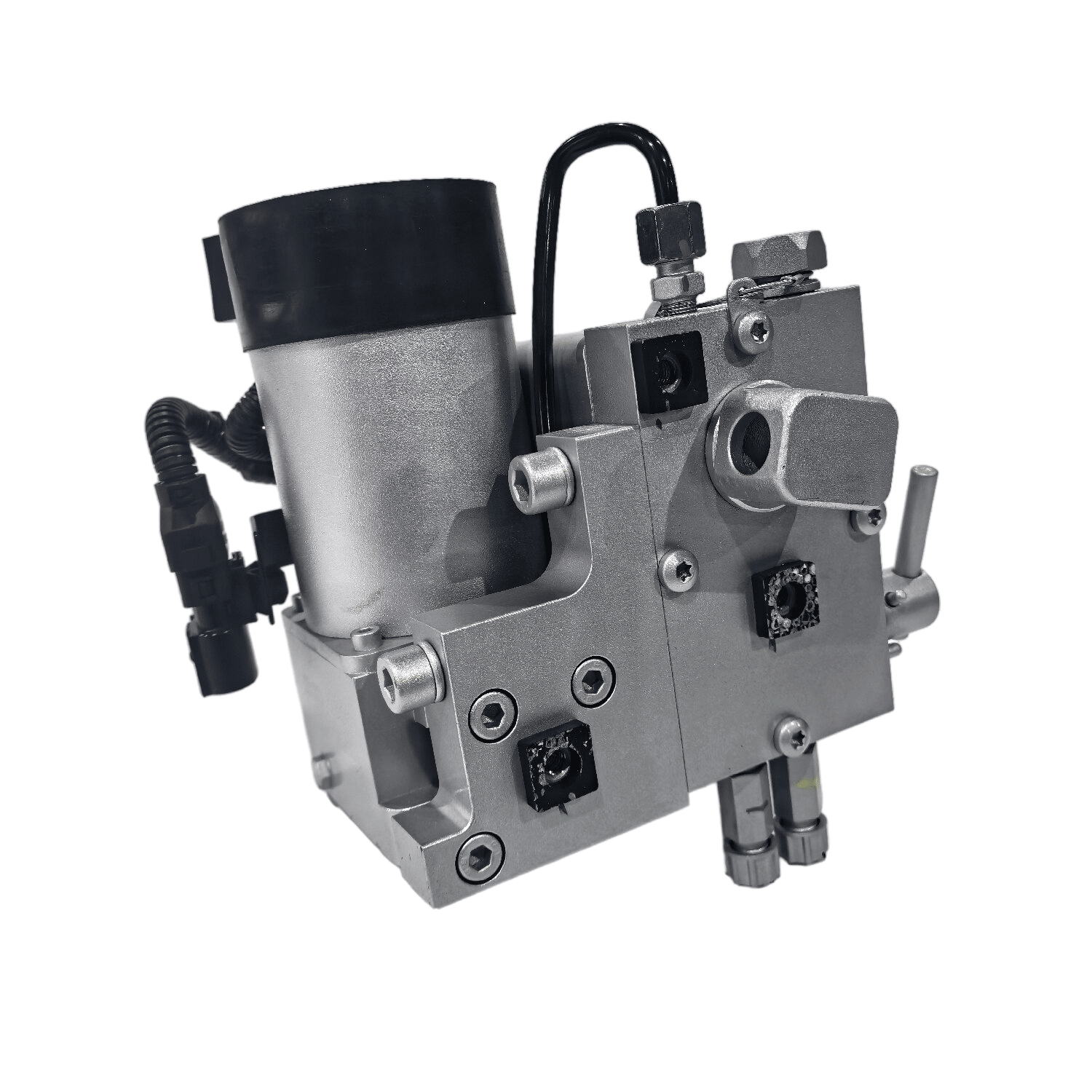

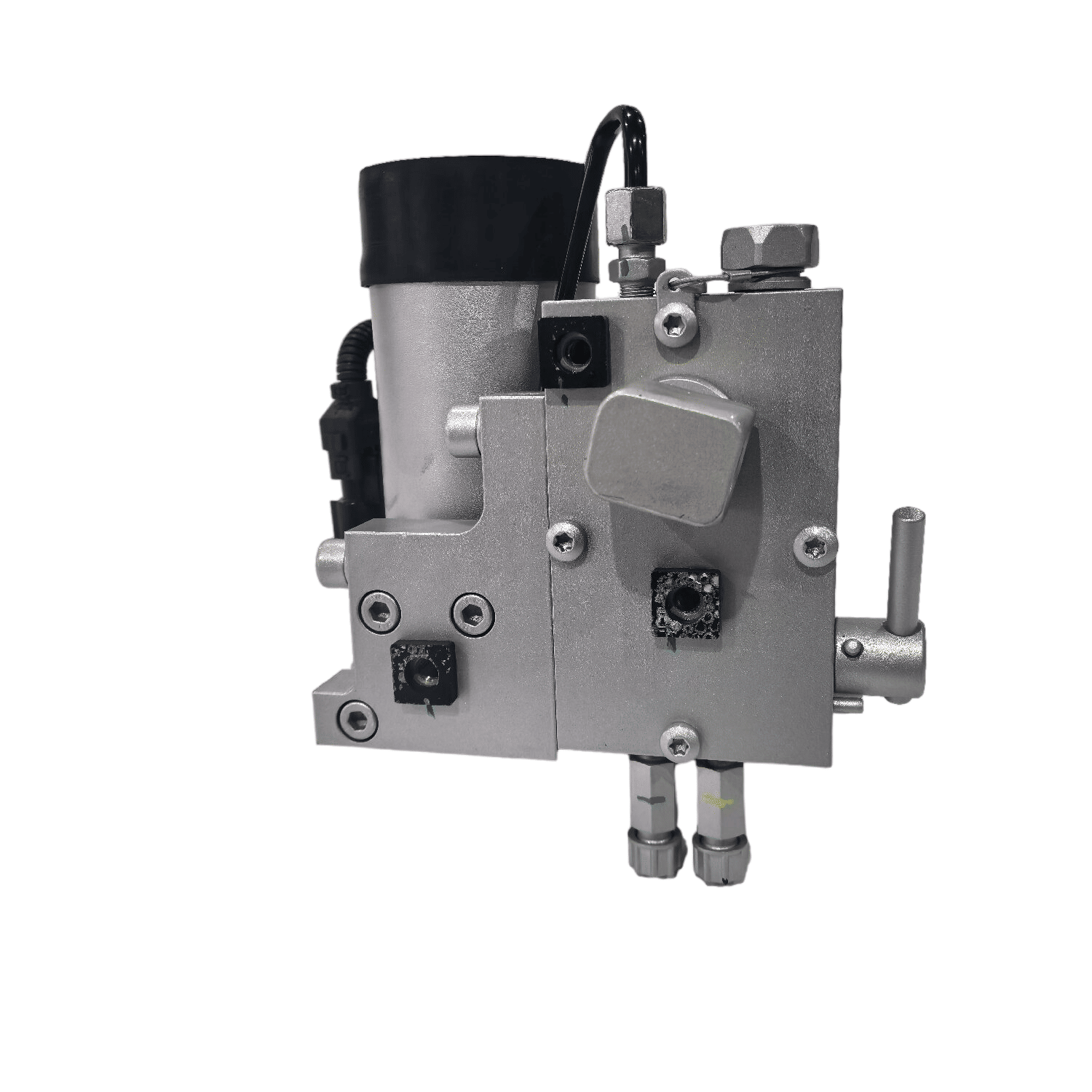

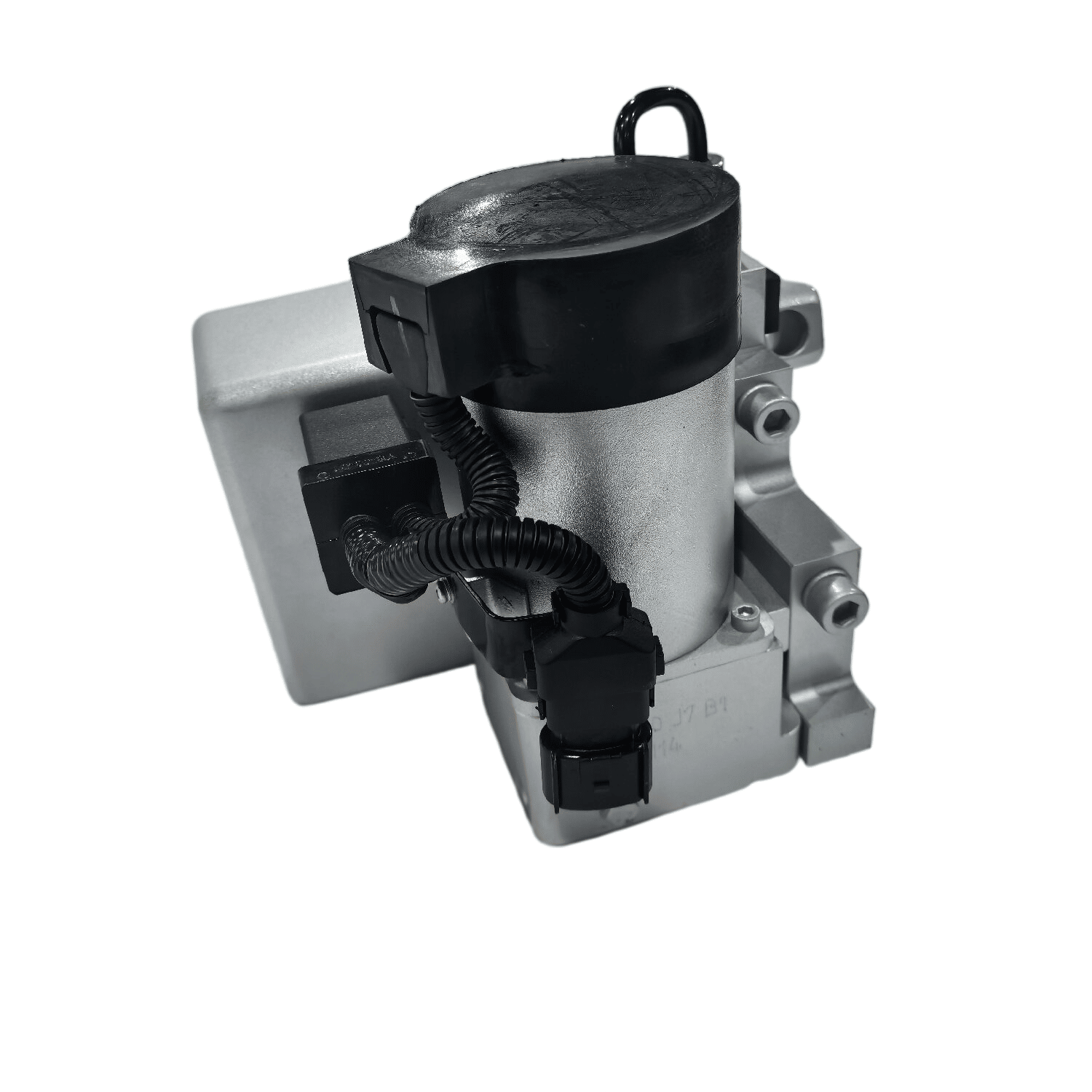

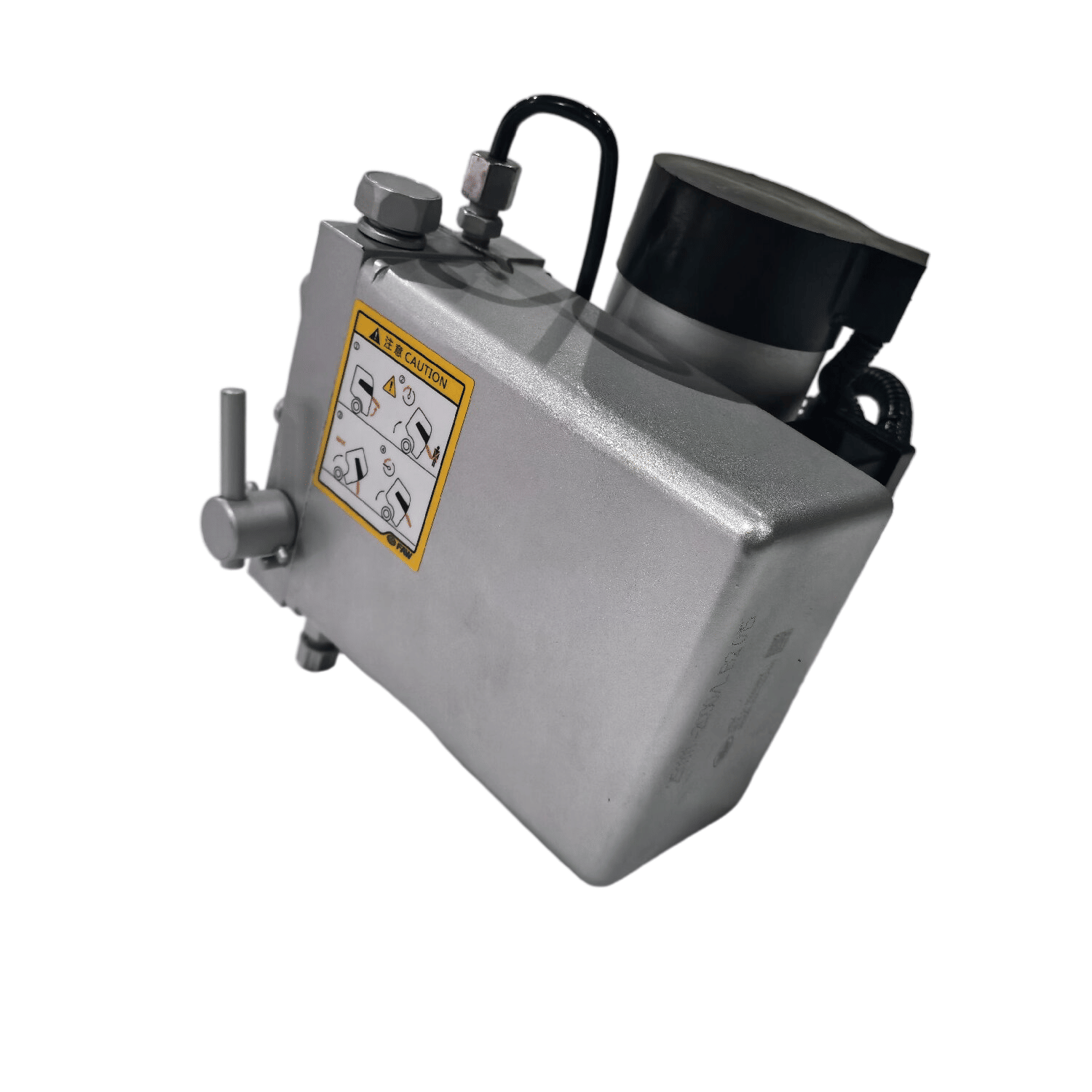

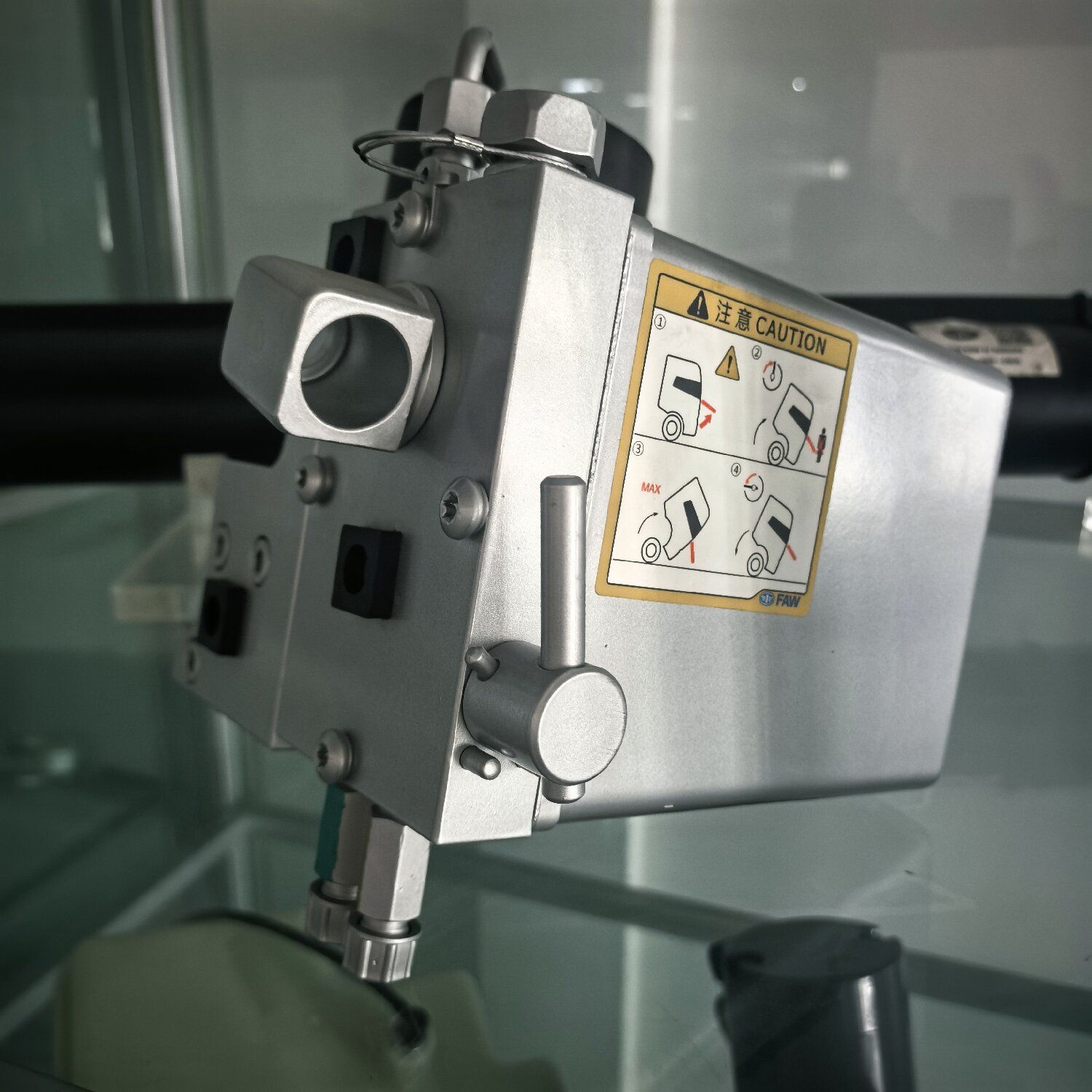

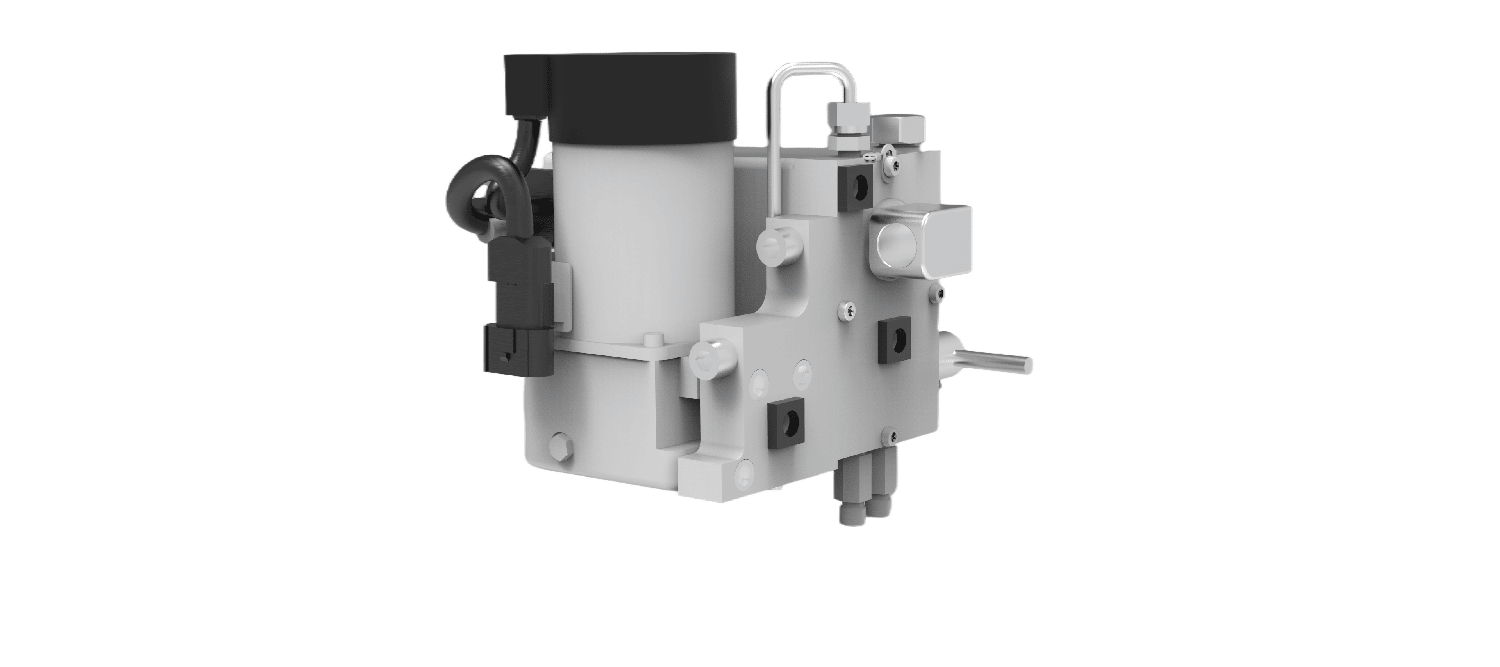

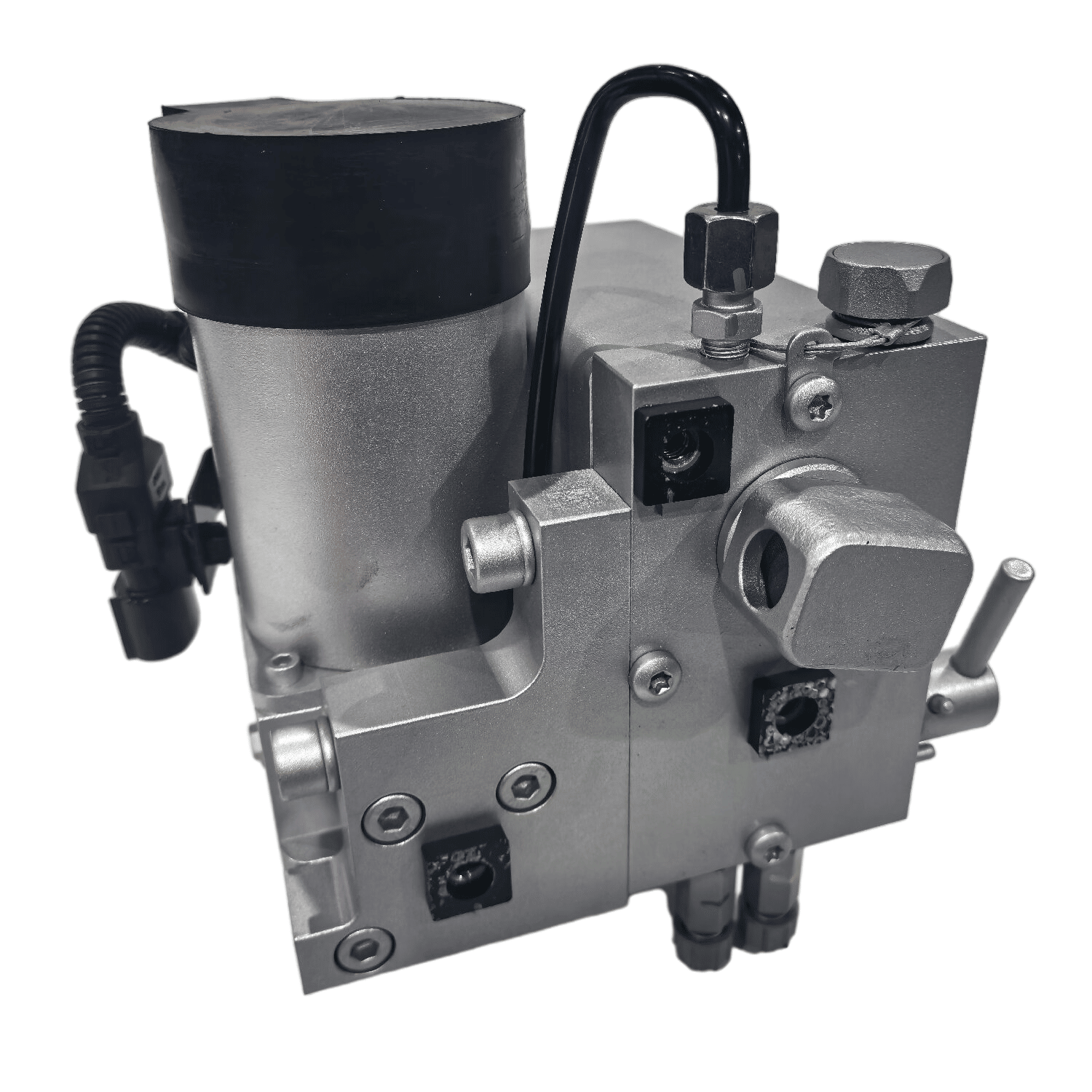

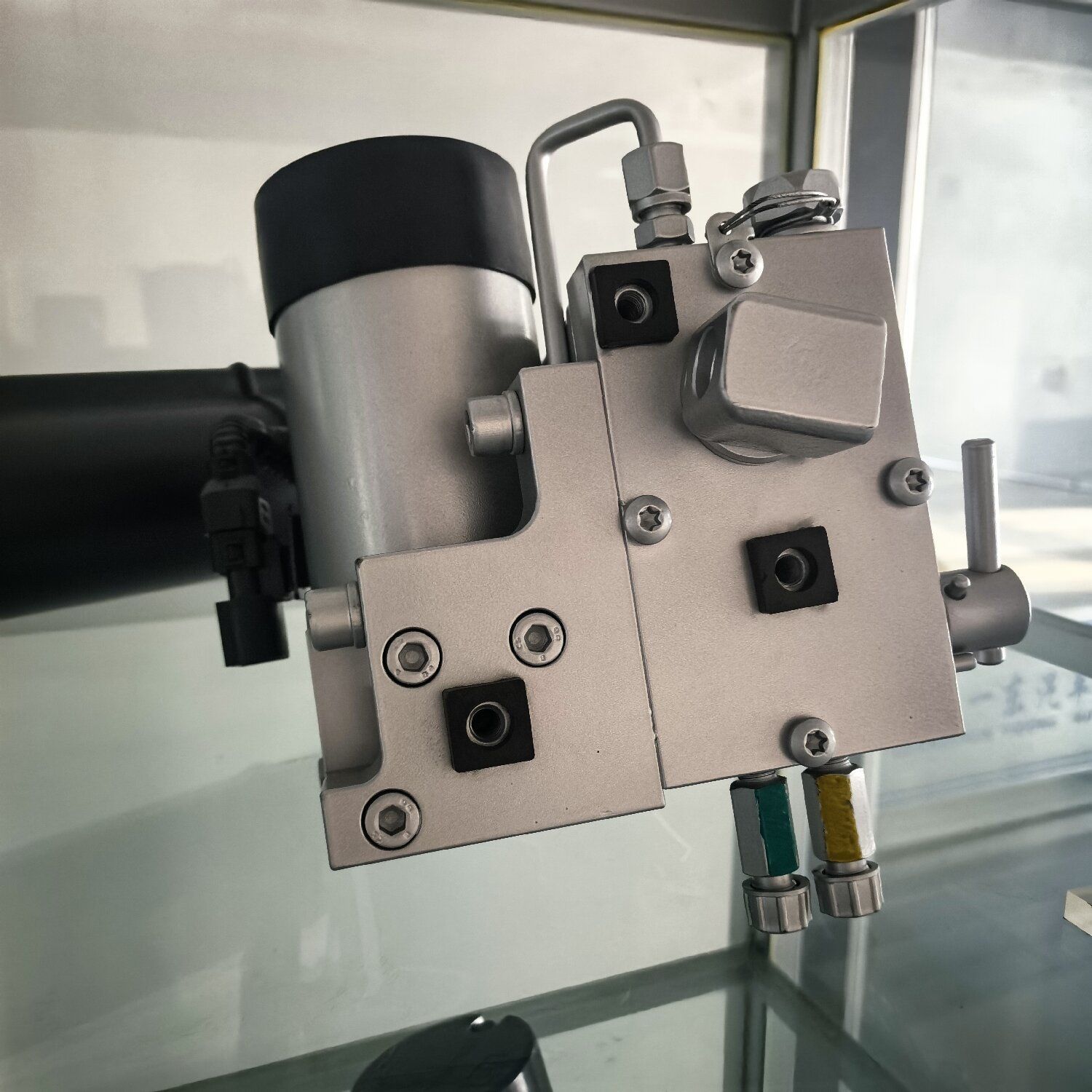

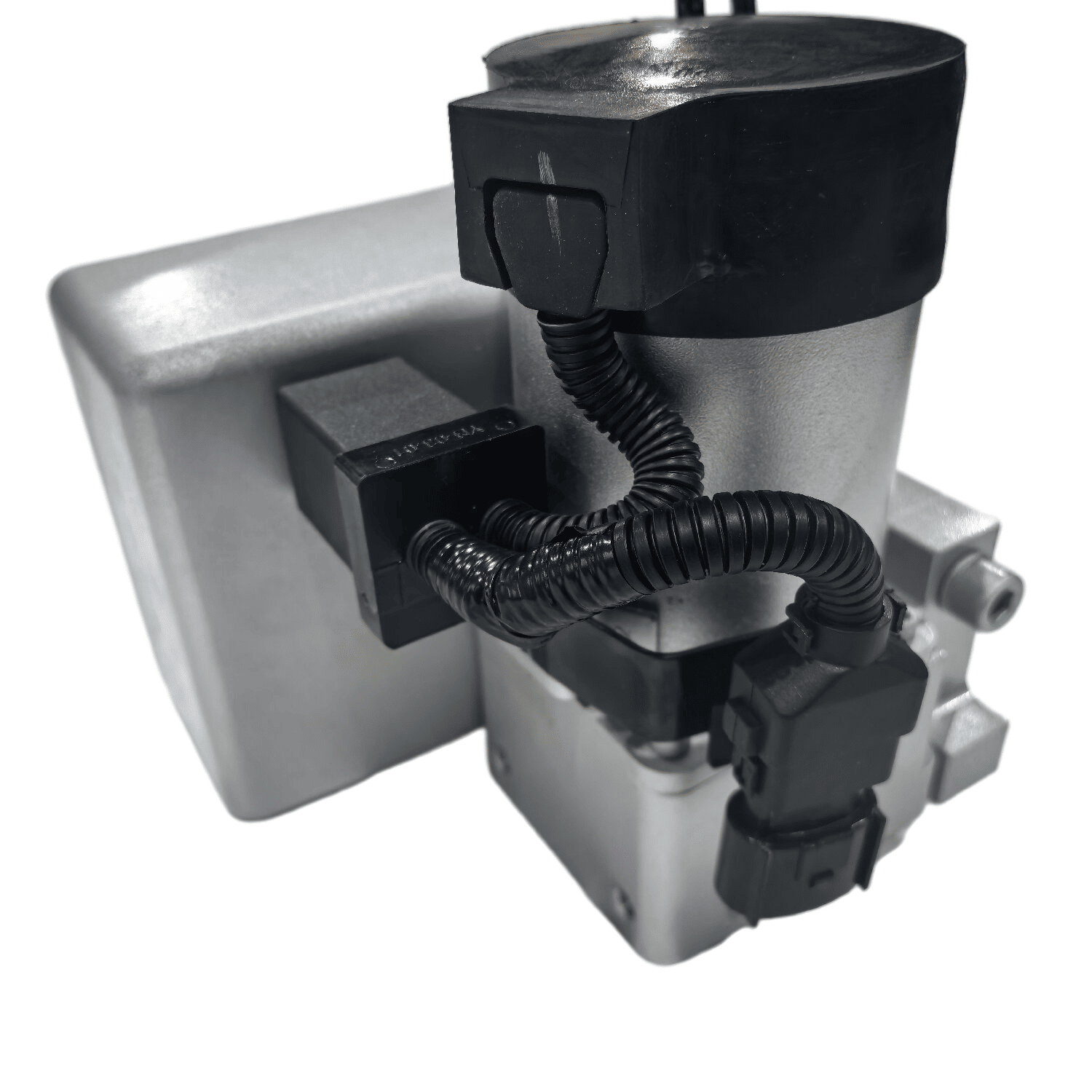

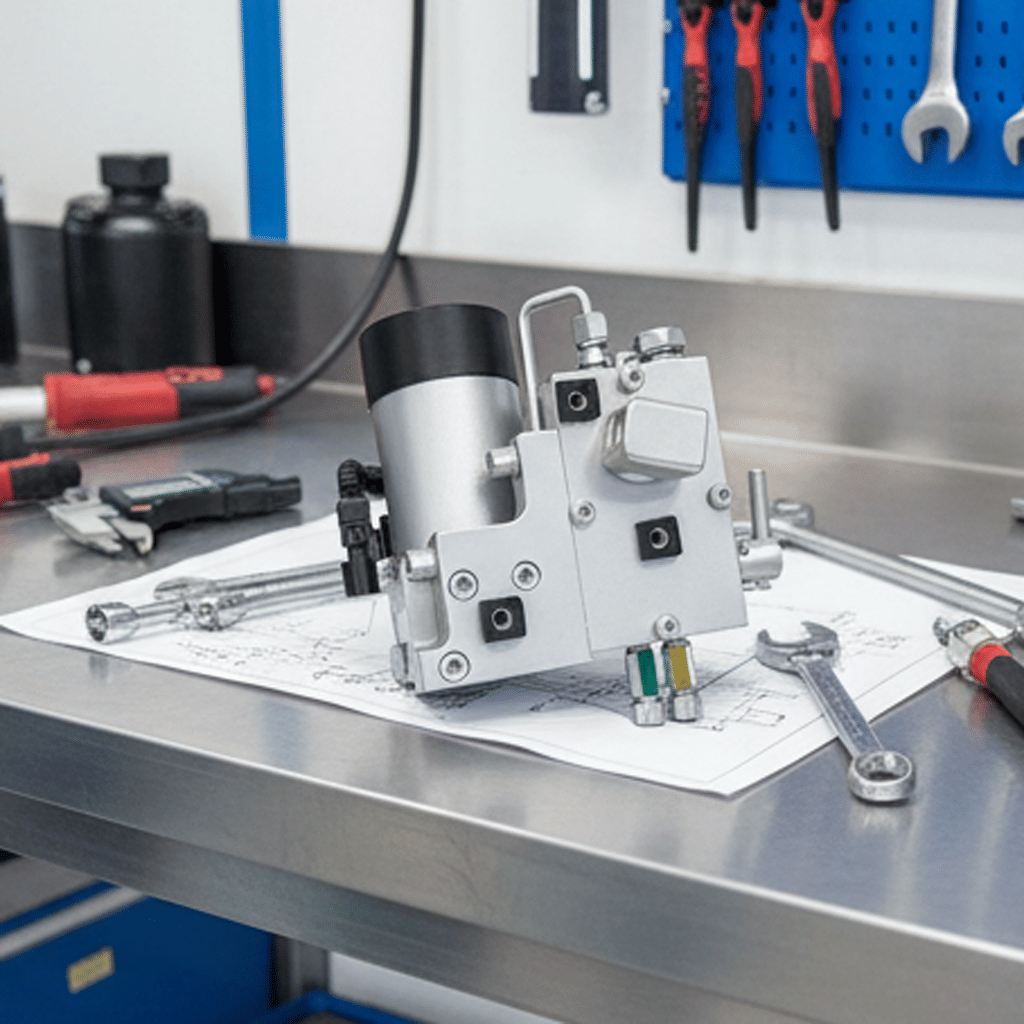

FAW Cab Tilt Hydraulic Pump for Heavy Truck

No.5002060-2000-C00/J

Engineered for reliable cab tilting on FAW heavy-duty and new-energy trucks.
Hydraulic design for easy installation and maintenance, stable actuation under 25 mpa.
Operates from -40℃ to +80℃, ideal for OEM replacement or fleet maintenance.

Get A Quote

Download

View all downloads

Description

Brief Introduction Of The Product

★ Engineered for reliable cab tilting on FAW heavy-duty and new-energy trucks.
★ Hydraulic design for easy installation and maintenance, stable actuation under 25 mpa.
★ Operates from -40℃ to +80℃, ideal for OEM replacement or fleet maintenance.

Product Feature

• Features:
High integration, compact, easy manual/electric switch, stable high-pressure output.
• Function:
Hydraulic power for tilting/resetting; manual pump for emergency use.
• MATERIALS:
Base: 45# steel; Reservoir: ADC12;
Seals: polyurethane
• APPLICATION:
For medium/heavy trucks, NEV heavy trucks, commercial vehicles, construction machinery.

Specification Parameter

TECHNICAL PARAMETERS
Product Name	Cab Tilt Hydraulic Manual-Electric Combined Pump
Product Model	5002060-2000-C00/J
Material	Steel
Type	Cab
Installation Location	Under Chassis
Structure	Load Bearing Body
Rated System Pressure	25MPa
Operating Temperature	-40℃~80℃
Relief Valve Setting	37~40MPa
Weight (incl. hydraulic oil)	≤7.5KG
Protection Rating	IP66
Max Reservoir Capacity	1130~1170ml
Oil Output per Stroke	4cm³±10%
Max Continuous Running Time	30min
Voltage	24V
Maximum Current	30A (Maximum)
Rated Current	25A
Oil Output per Second	≥4ml/s
Relay Protection Rating	IP67
