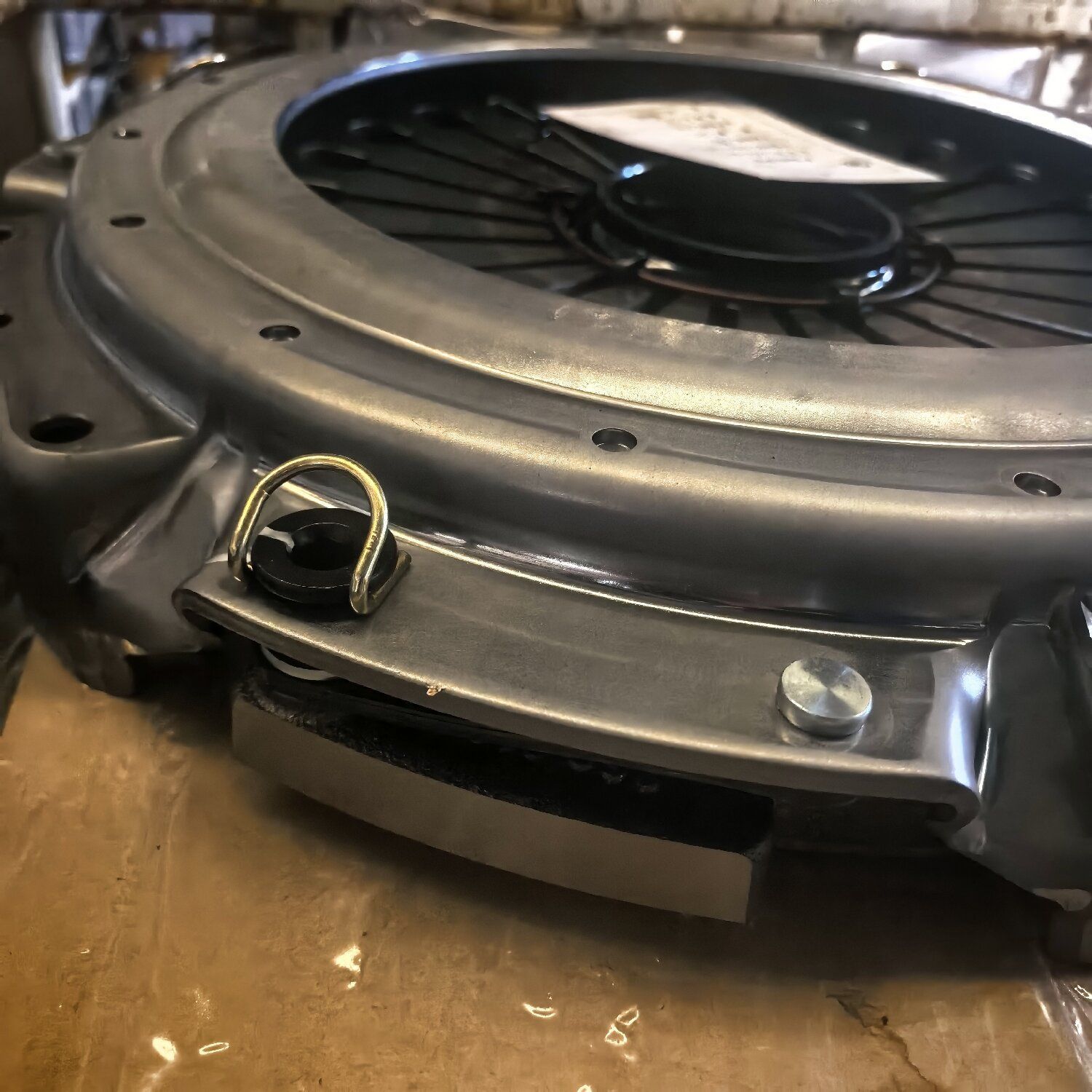

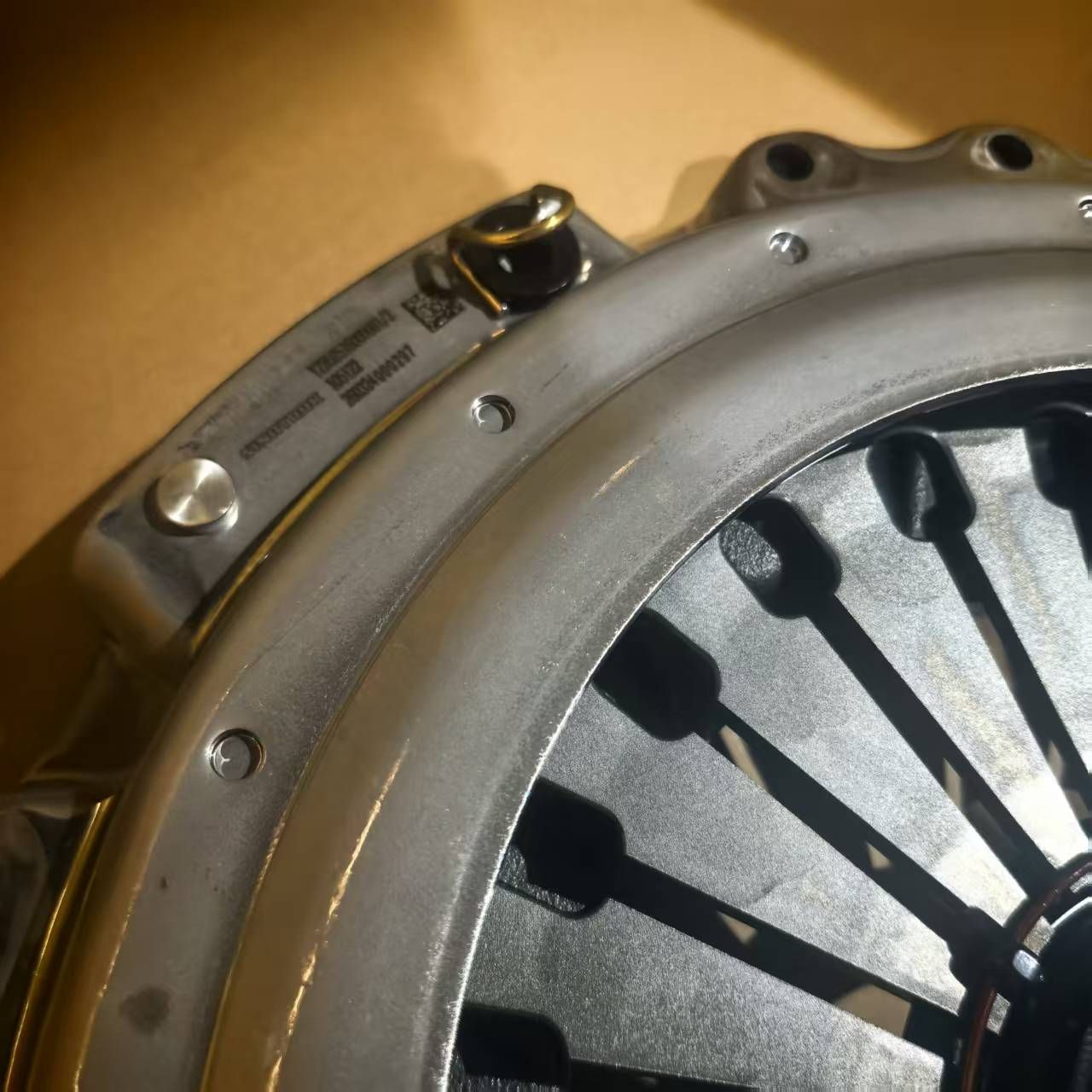

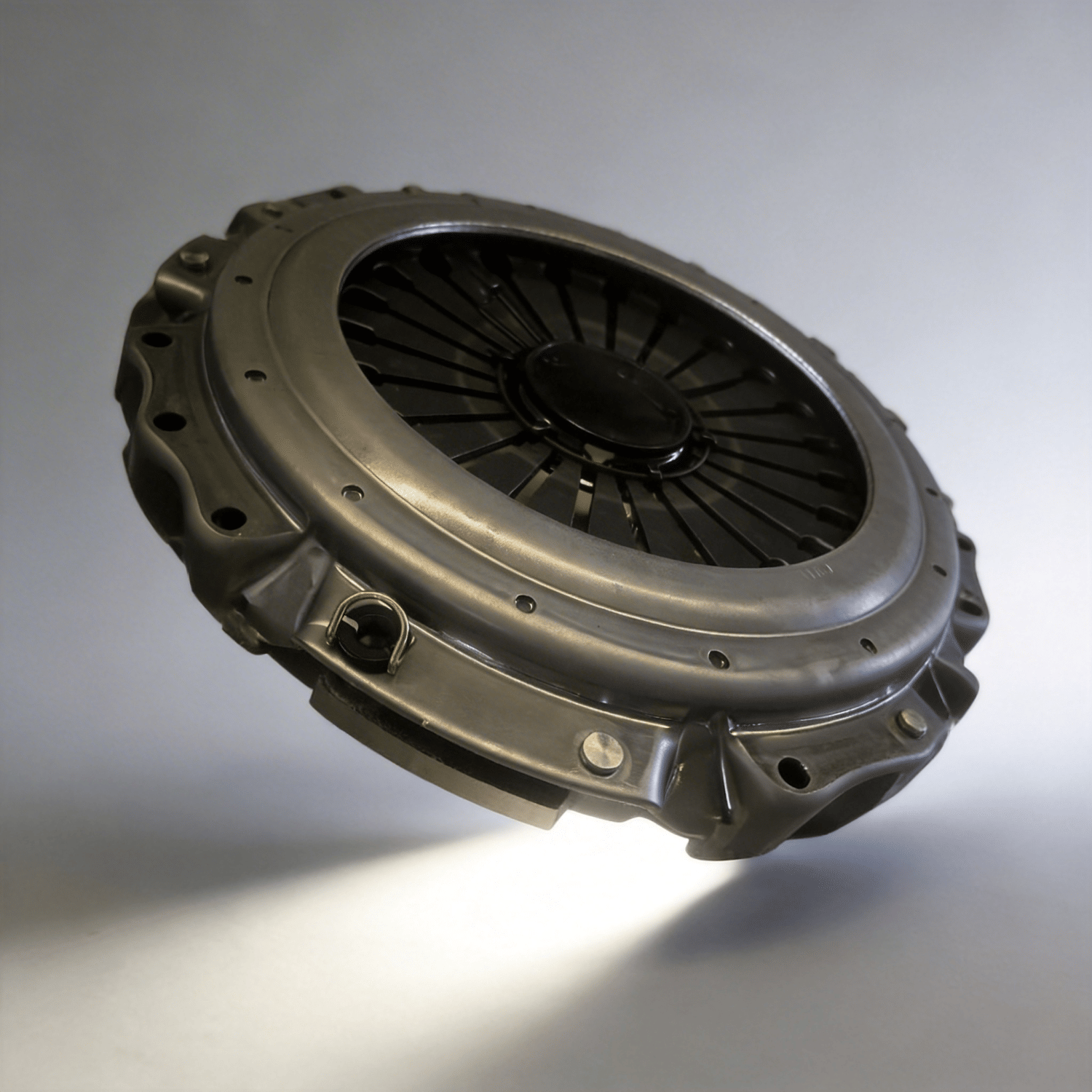

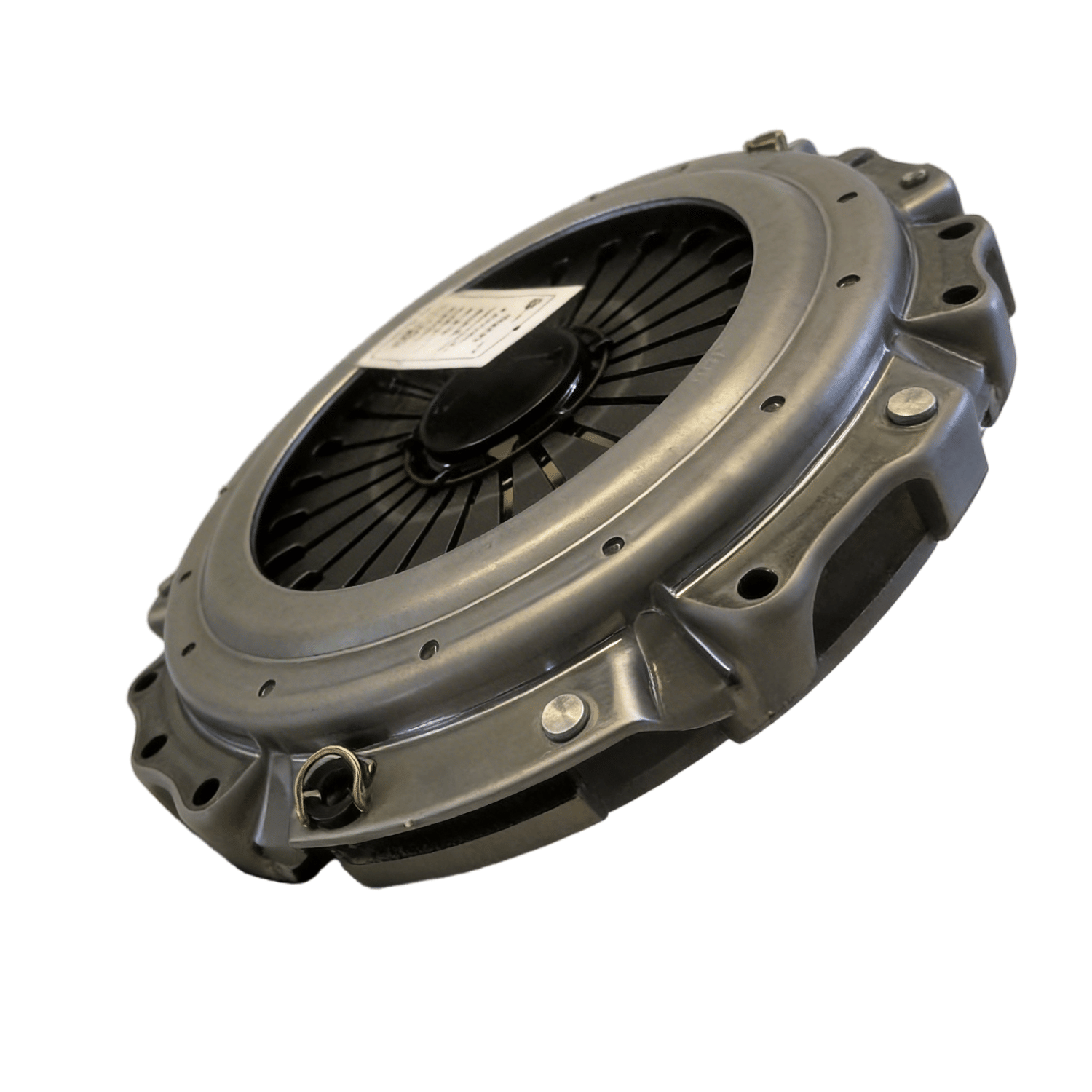

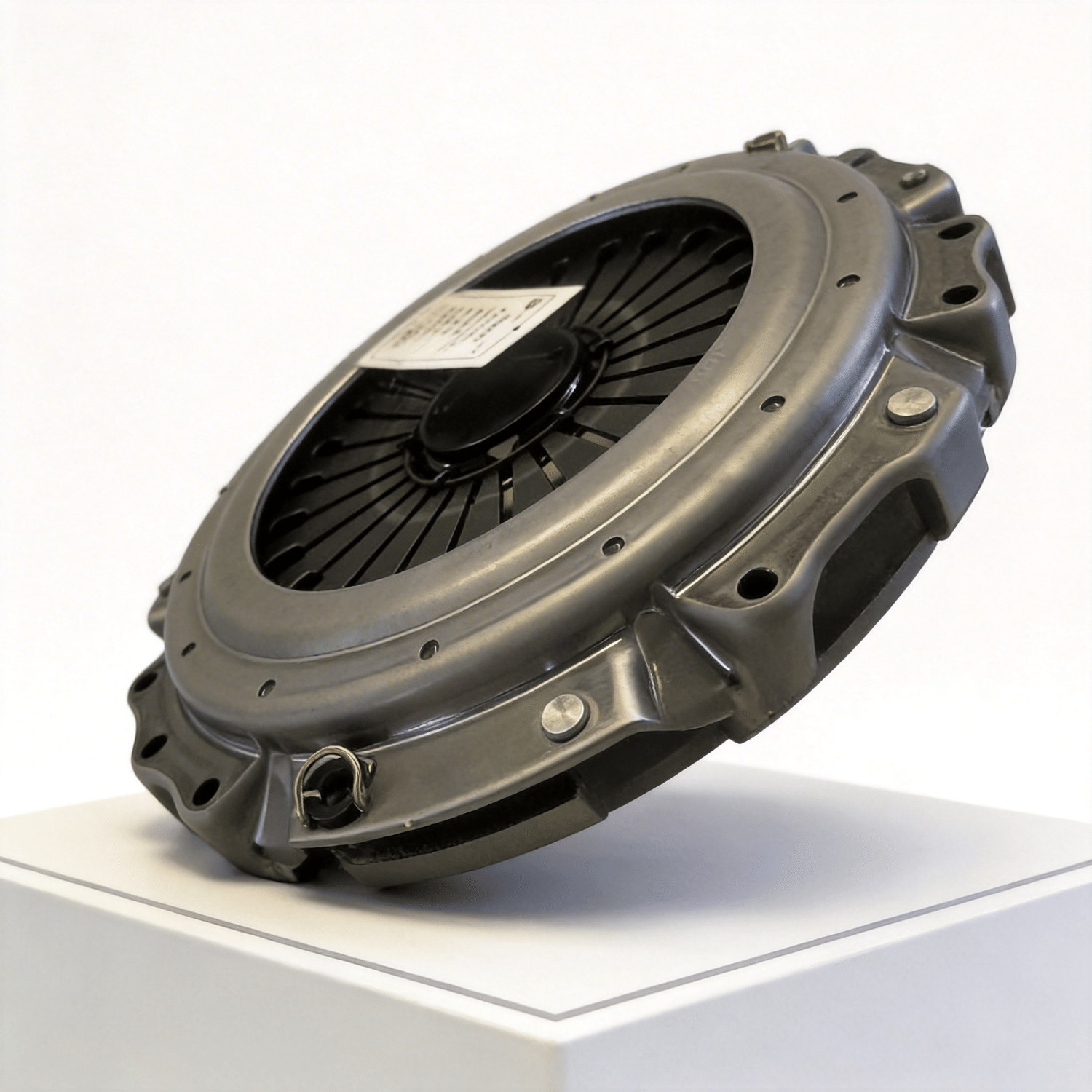

430mm Clutch Assembly For HOWO Heavy-Duty Commercial Vehicles 1601210-721C/A

No.1601210-721C/A

Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Get A Quote

Download

View all downloads

Description

Brief Introduction Of The Product

★ Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification is Ф180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

Product Feature

• Engineered for 2600Nm torque, this cover delivers 34,000N clamping, 11,500N max release force. Release finger: φ106mm, stroke: 13-14mm, wear: 3.6mm.
• Precision design: φ475mm spigot, 55mm install height, 63.5mm bolt step. Pressure plate: φ434mm inner, φ257mm outer; gauge plate: 10.6mm thick. Compact: 97mm height, φ482mm max diameter.

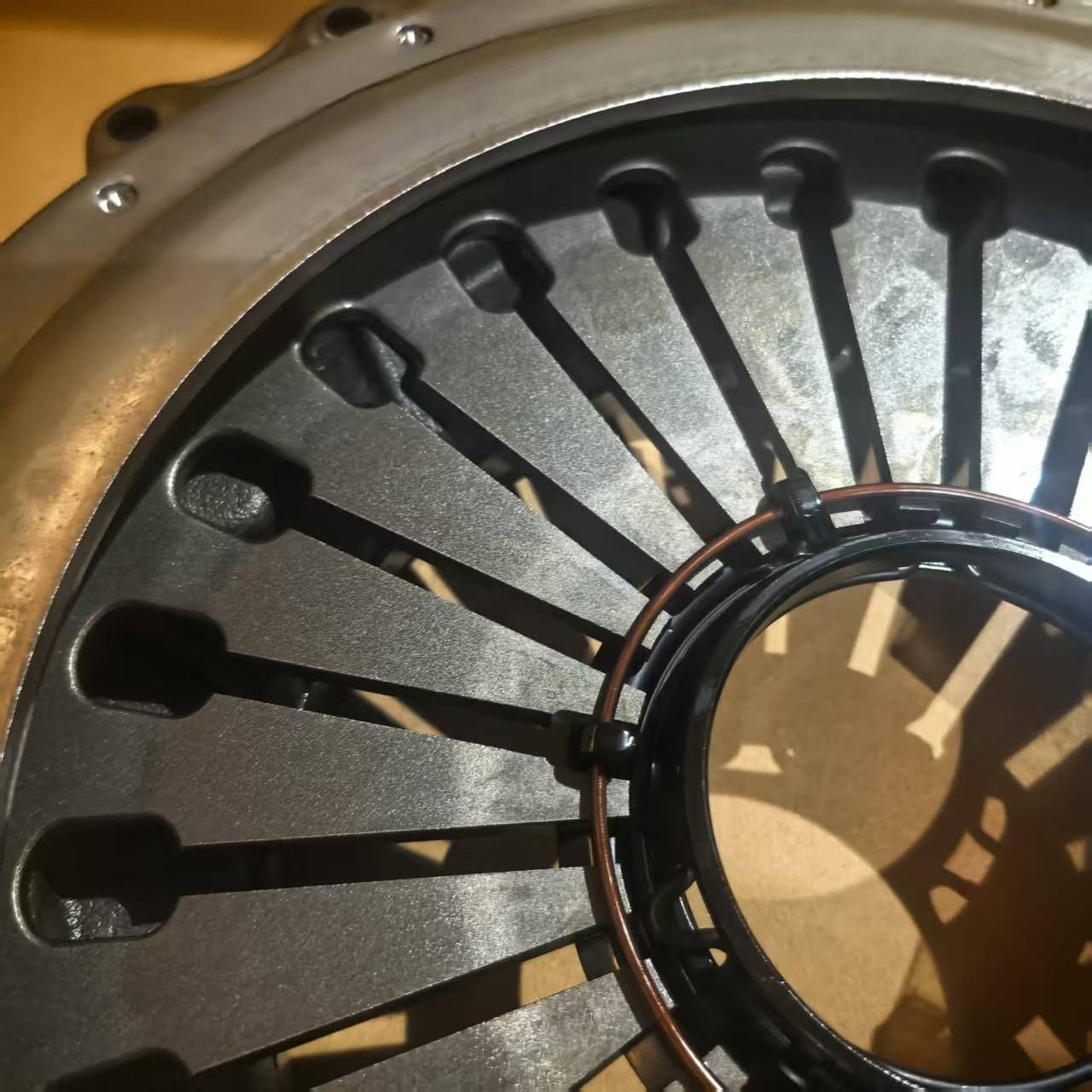

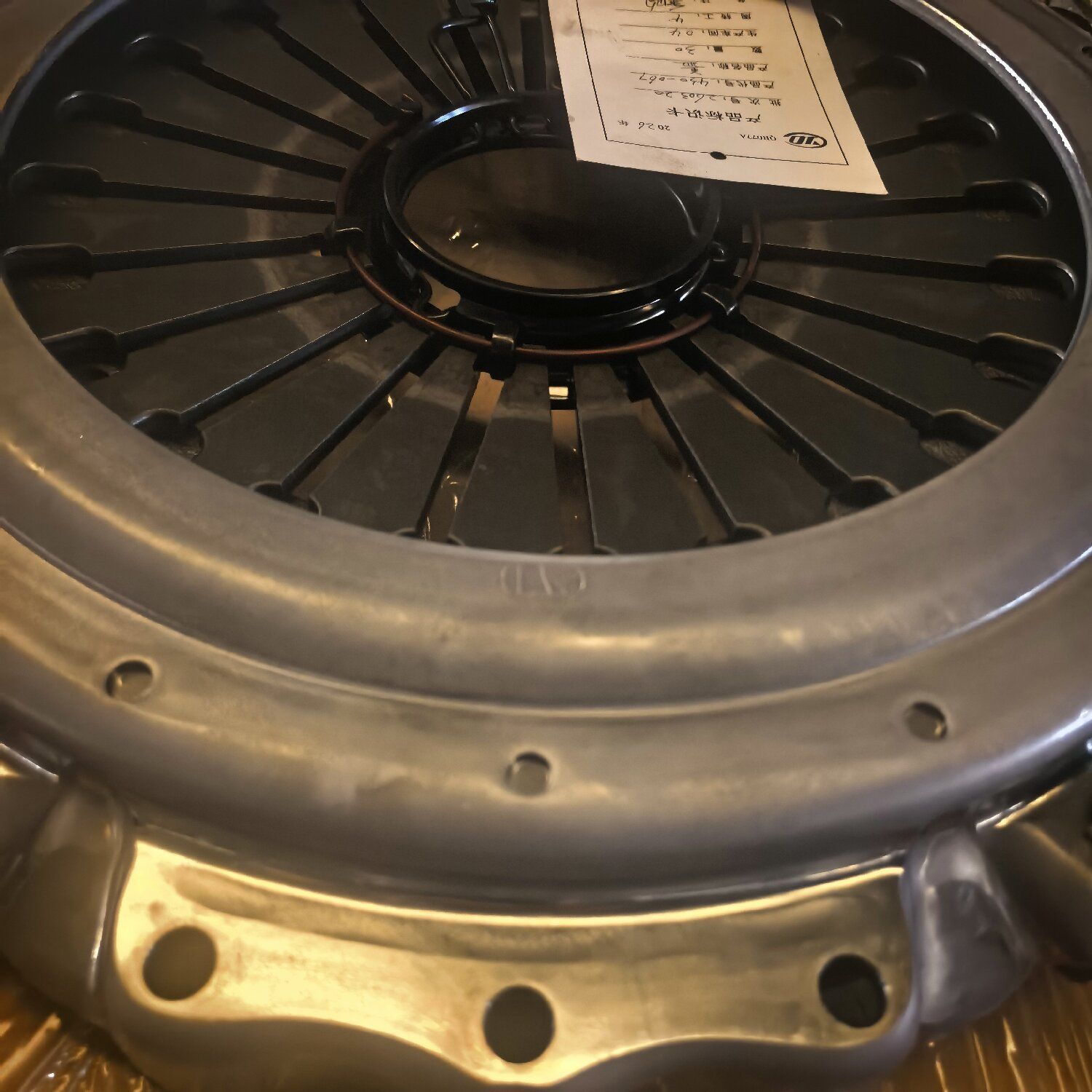

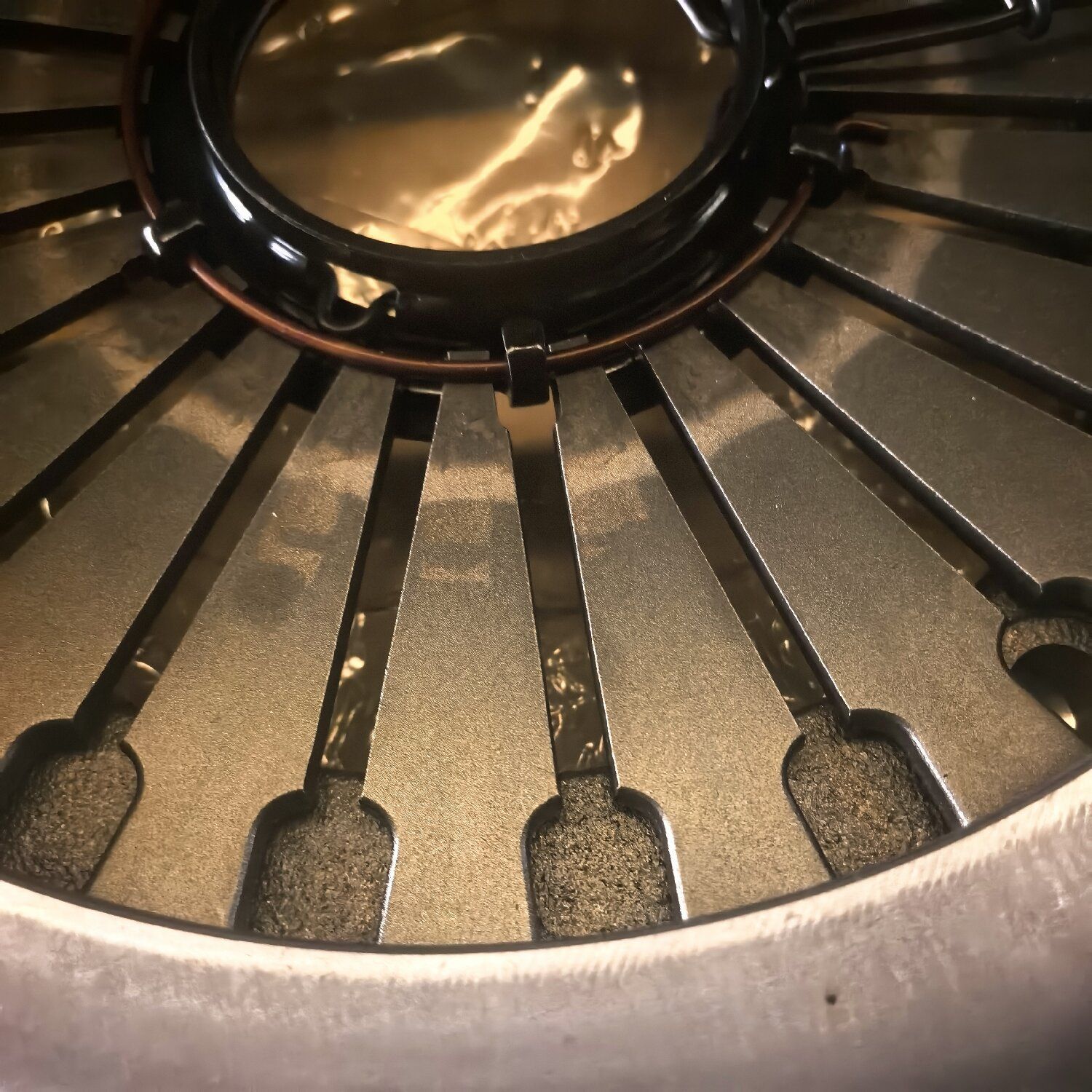

• Diaphragm Spring Hot Coining Process：

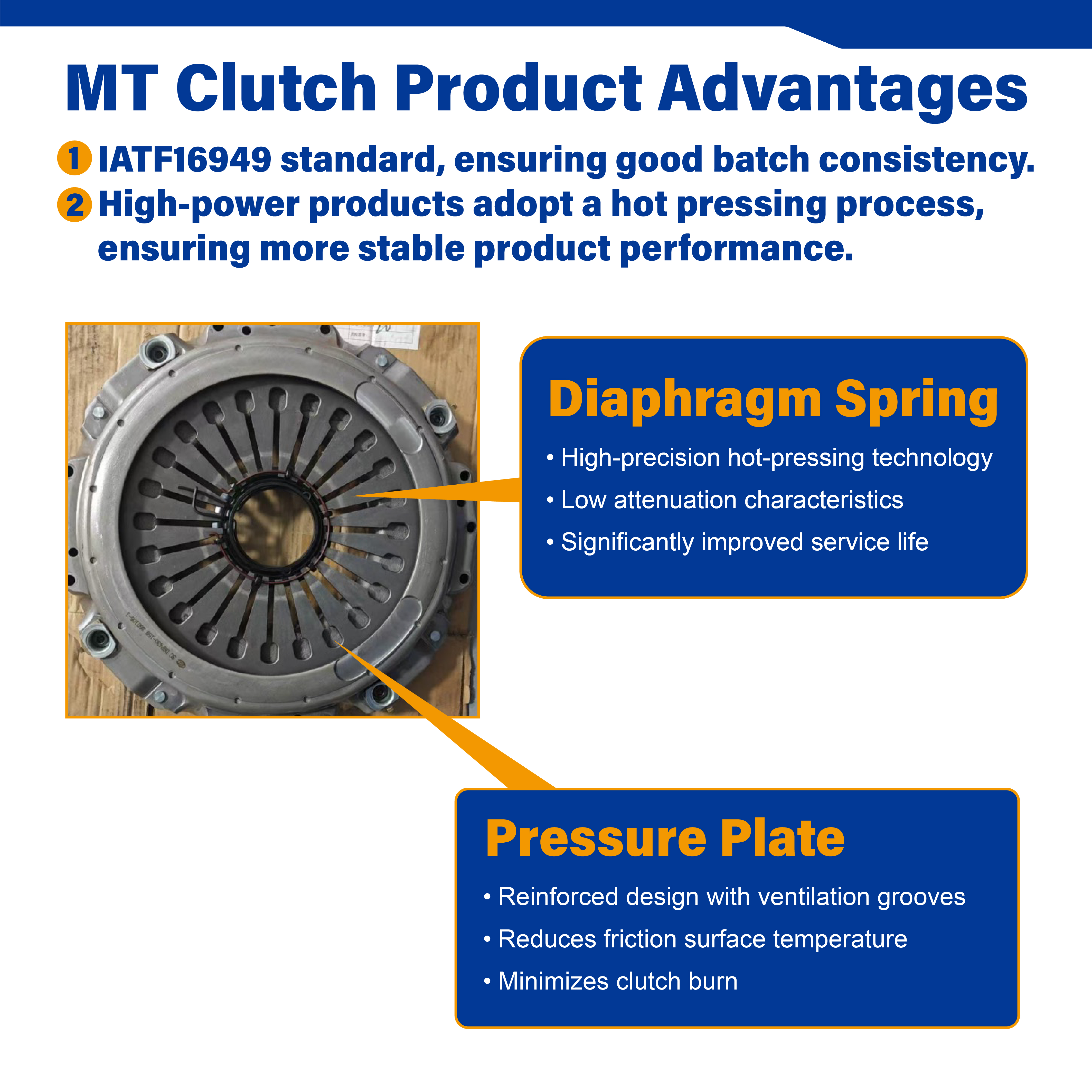

Diaphragm spring formed via high-precision hot coining, verified by 3 million bench tests. Attenuation rate of clamping and release force stable within 10%, meeting design specs.

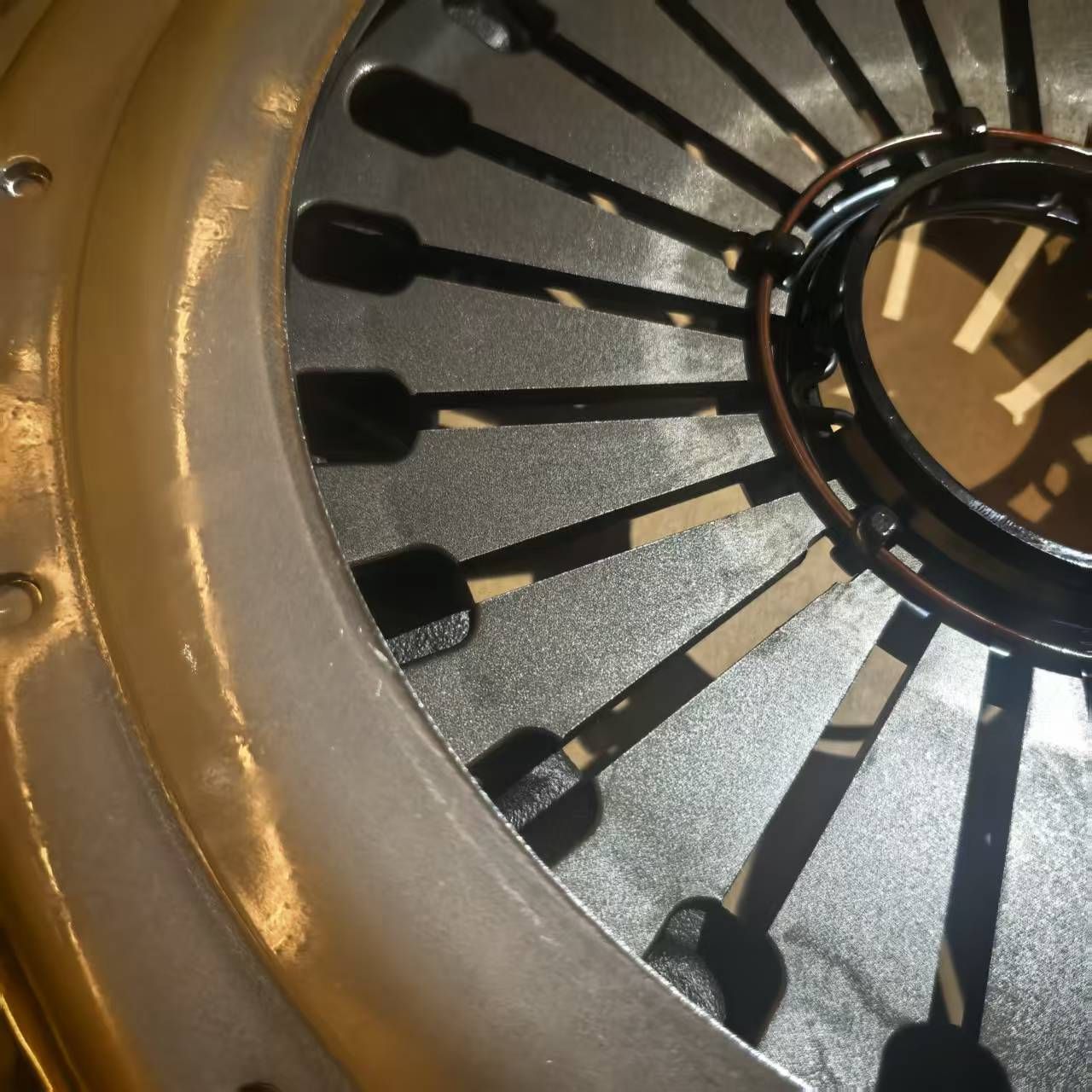

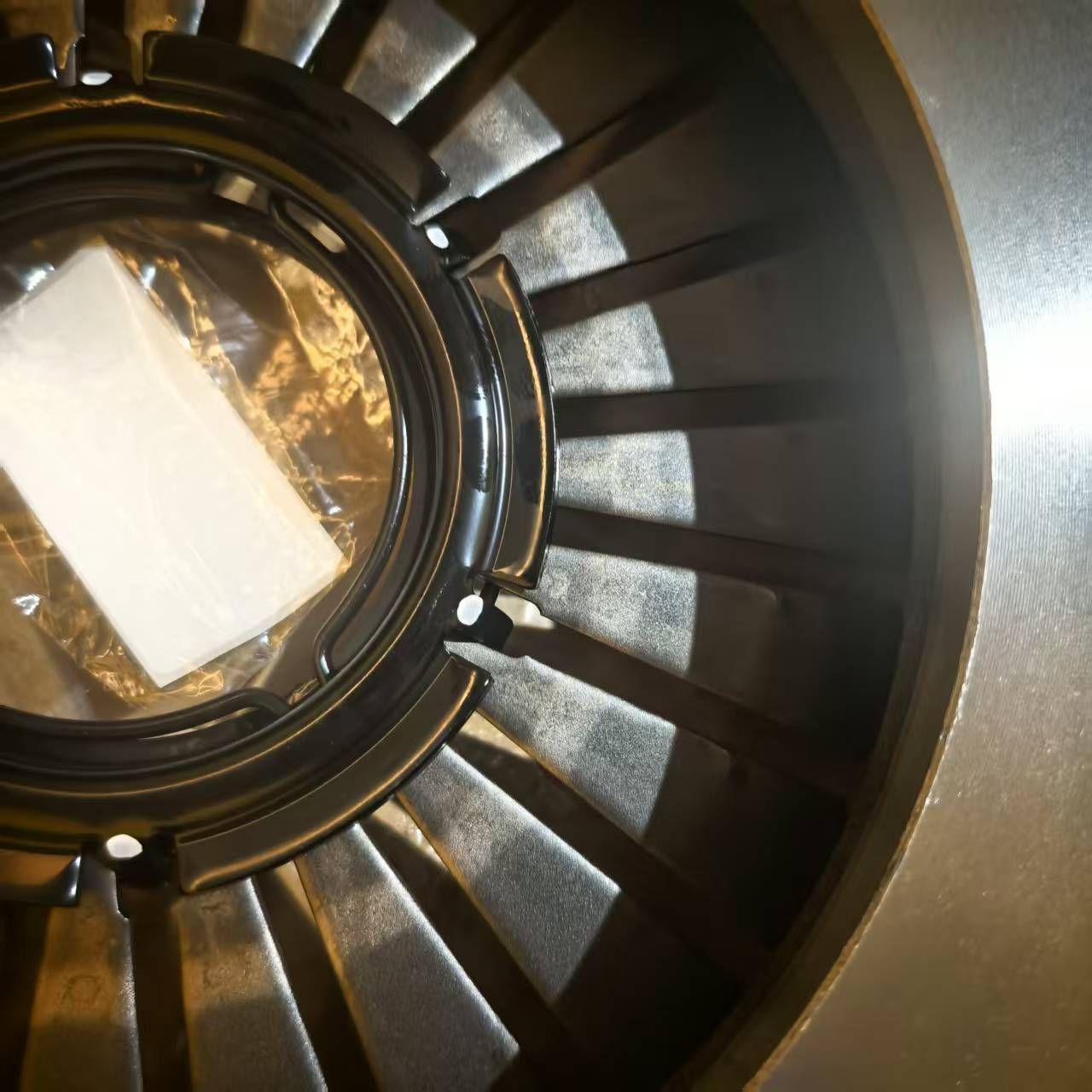

• Elastic Support Ring Design：
The elastic support ring design eliminates wear clearance between diaphragm spring and fulcrum, extending clutch life and stabilizing release. This supports precise AMT control, improving shift smoothness and response.
• AMT Cover Assembly Release Force Curve Design：
Optimized AMT cover assembly release design focuses on controlling release force drop stiffness (≤ 100 N/mm) and variation (≤ 12%). Ensures stable release, prevents overshoot, and enhances AMT shift quality.

Specification Parameter

TECHNICAL PARAMETERS
Product Name	AMT Clutch Cover Assembly
Application	Heavy Duty Trucks & Commercial Vehicle
Certification	ISO/TS16949:2002 & Other
Classification	Magnetic Powder Clutch
Material	Steel
Clutch Component	AMT Clutch Cover
Matching Engine Torque	2600Nm
Clamping Force	34000N min
Release Force	11500N max
Release Finger Working Diameter	φ106mm
Installation Height	78mm
Release Stroke	13-14mm
Wear Amount	3.6mm
Spigot Diameter	φ475mm
Gauge Plate Thickness	10.6mm
Pressure Plate Inner Diameter	φ434mm
Pressure Plate Outer Diameter	φ257mm
Installation Bolt Step Height	63.5mm
Maximum Height	97mm max
Maximum Outer Diameter	φ482mm
