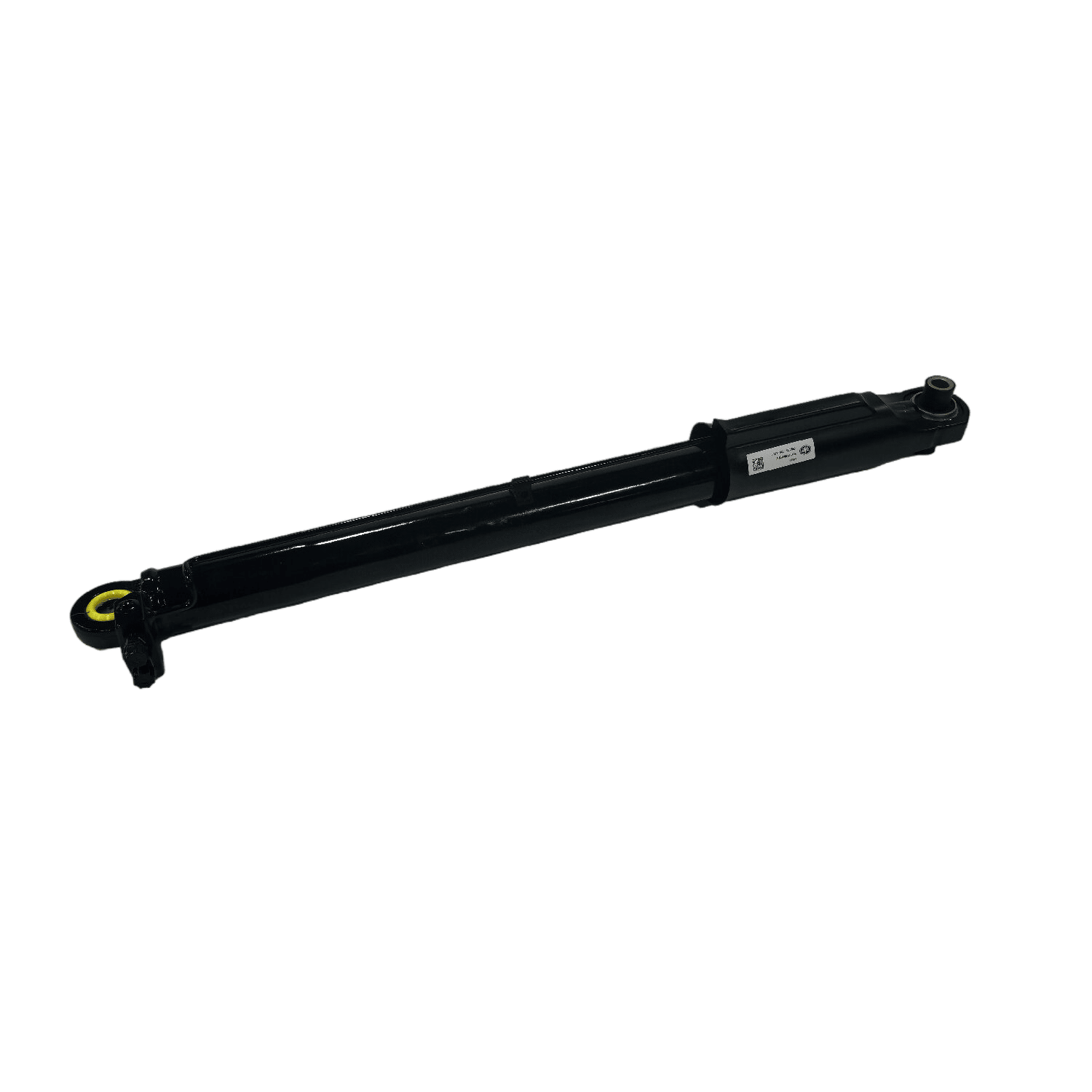

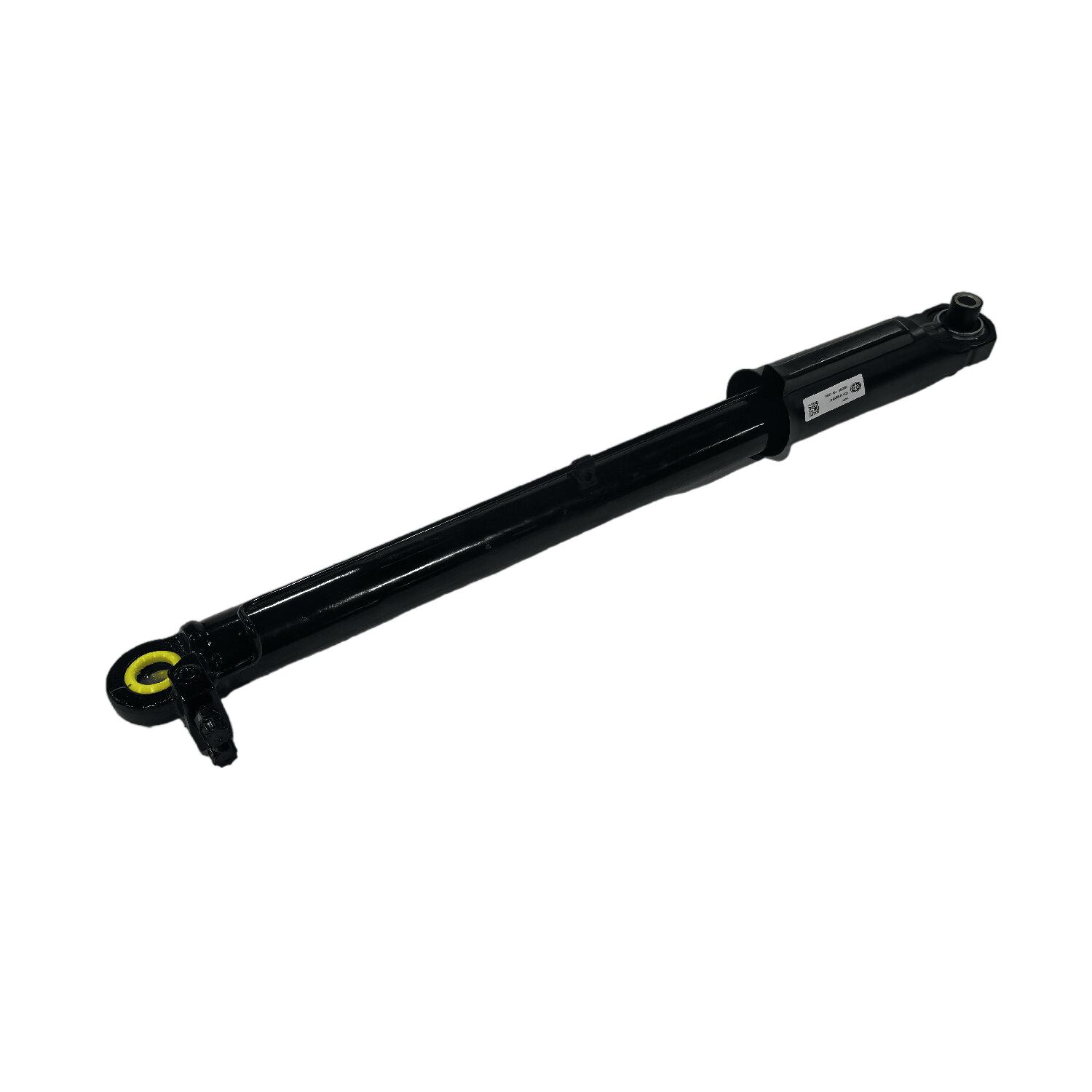

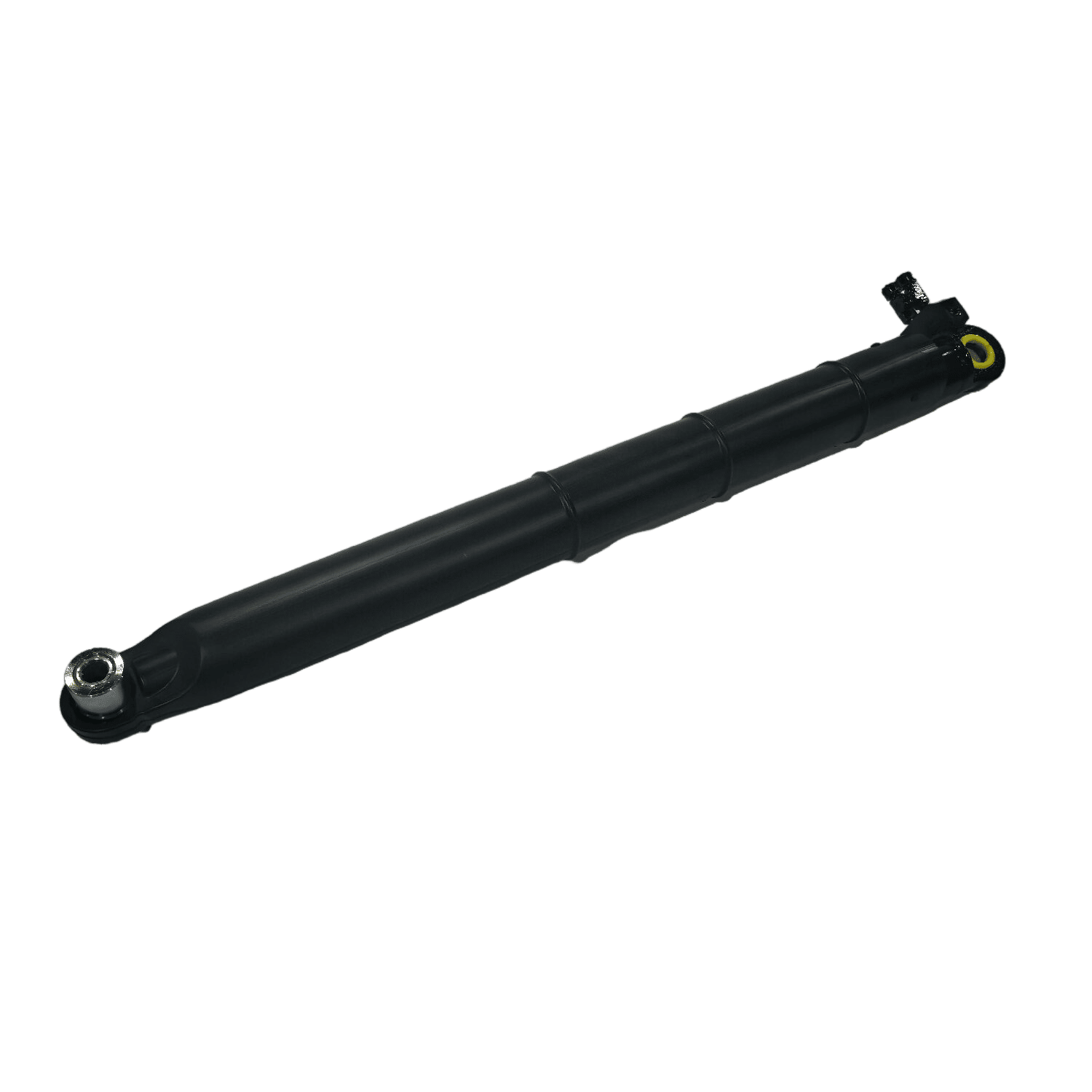

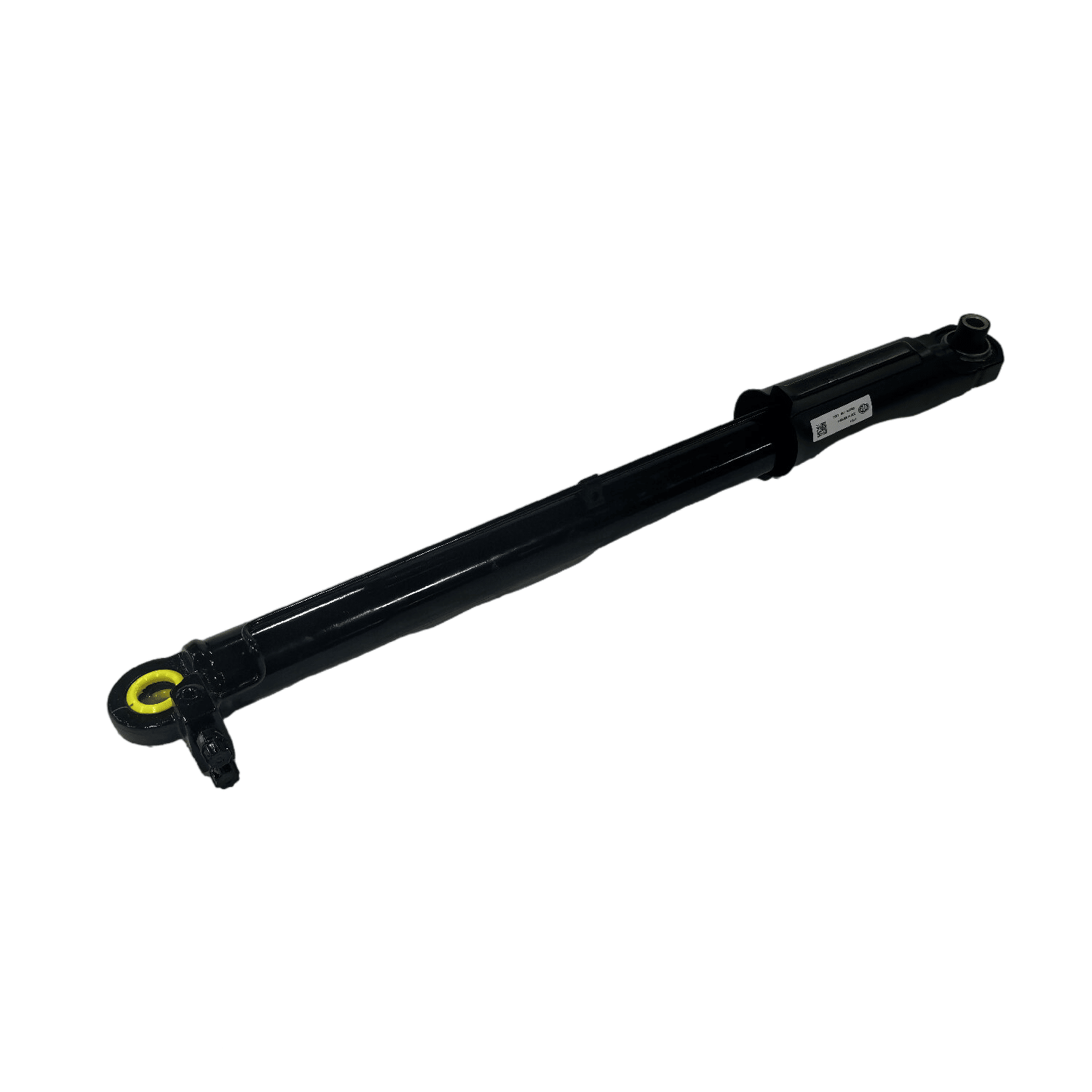

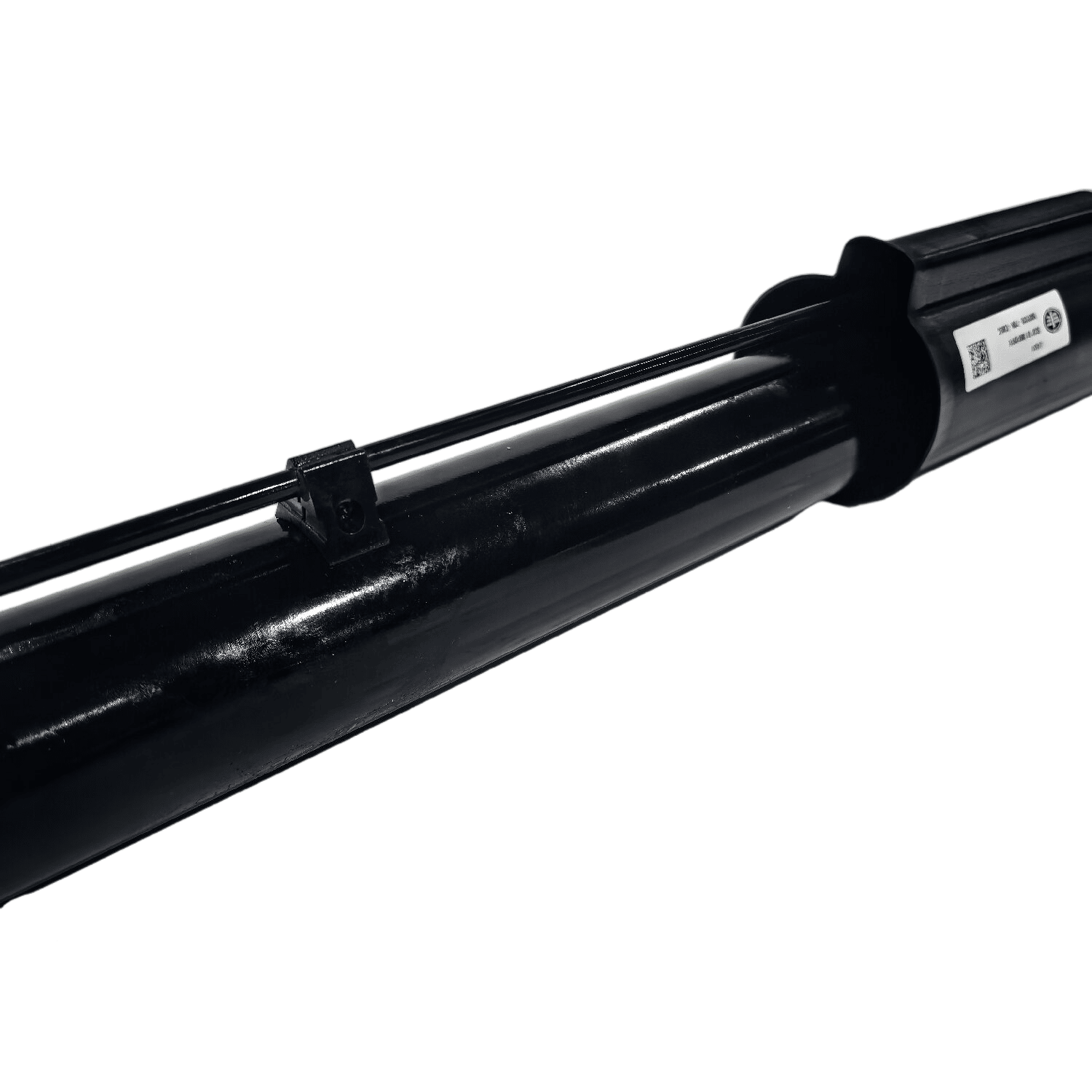

Heavy-Duty Hydraulic Cylinder for FAW Truck Cabin

No.5002020-70N-C00/C

This FAW heavy truck cab tilt hydraulic cylinder is engineered for reliable cab tilting on heavy-duty trucks, new-energy heavy trucks.

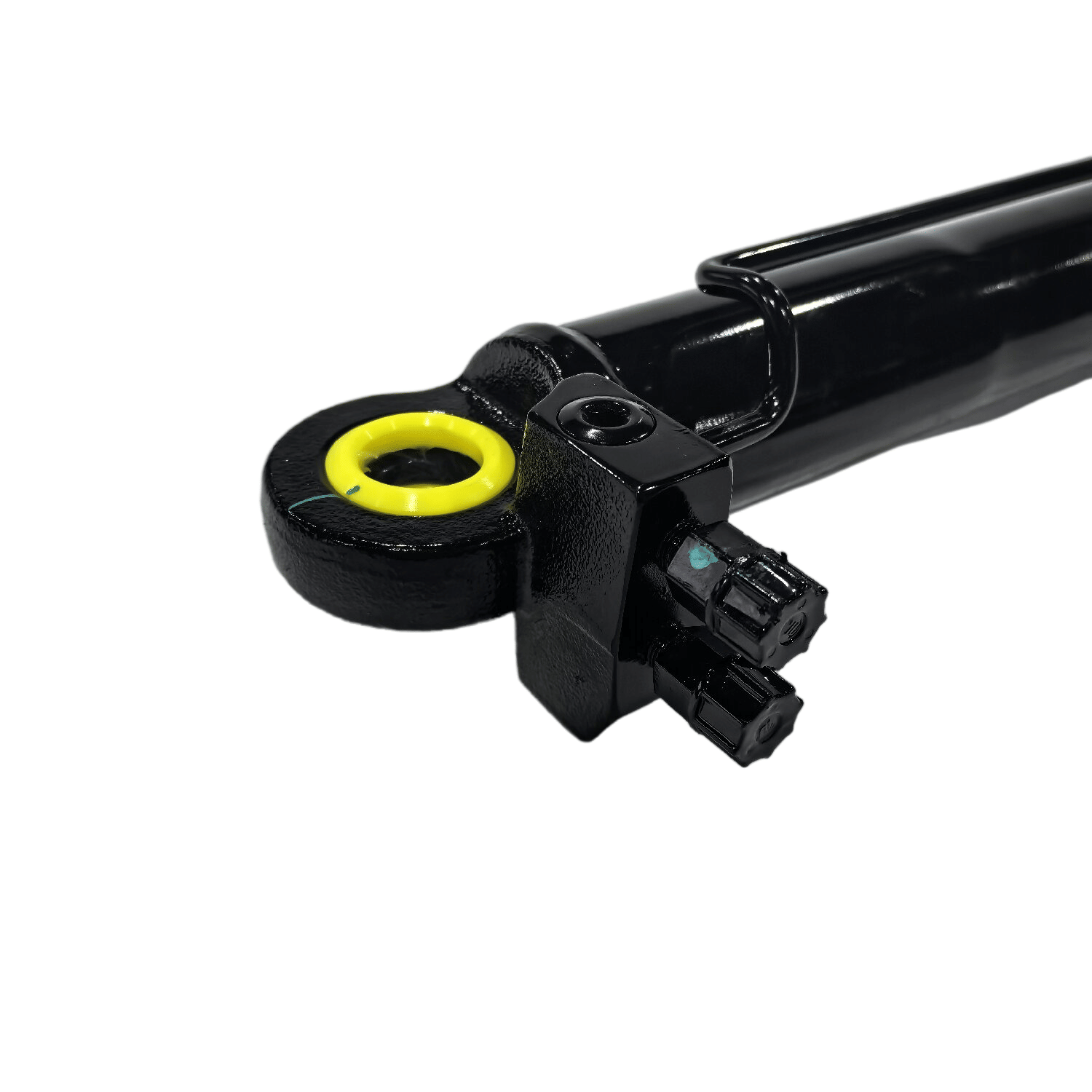

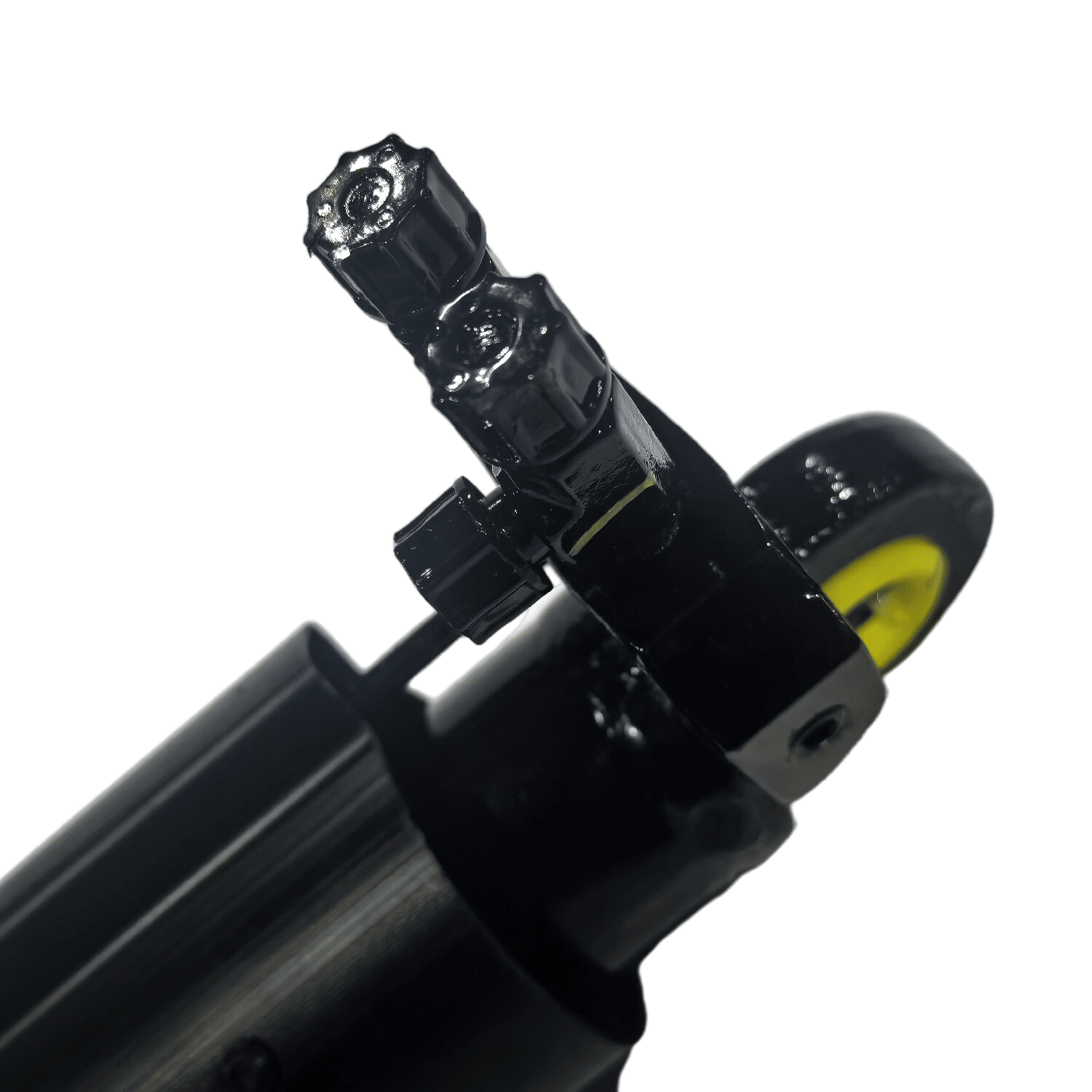

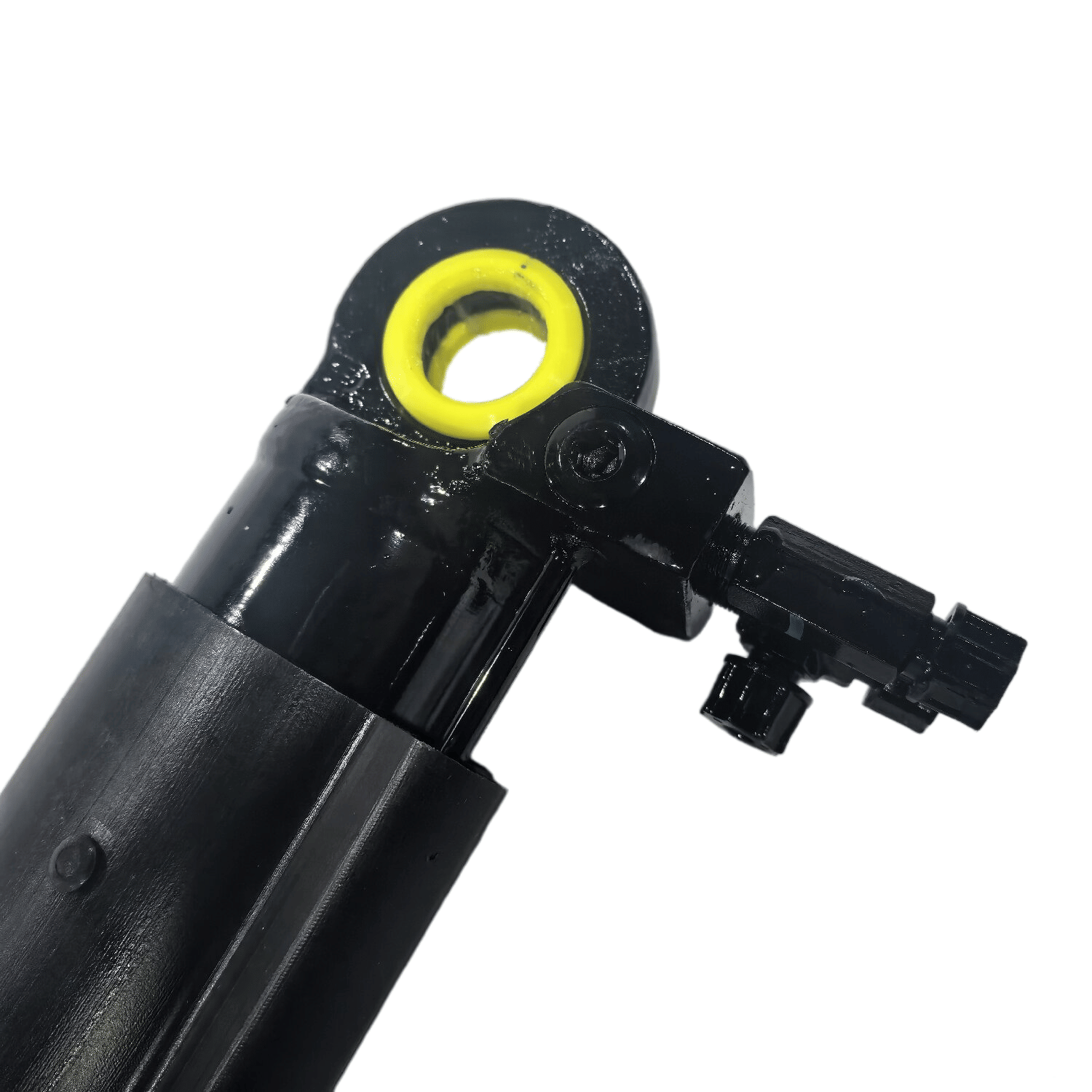

Featuring a quick-connect hydraulic structure, it enables fast, convenient installation and maintenance while ensuring stable linear actuation under high pressure up to 28 mpa.

Get A Quote

Download

View all downloads

Description

Brief Introduction Of The Product

★ This FAW heavy truck cab tilt hydraulic cylinder is engineered for reliable cab tilting on heavy-duty trucks, new-energy heavy trucks.
★ Featuring a quick-connect hydraulic structure, it enables fast, convenient installation and maintenance while ensuring stable linear actuation under high pressure up to 28 mpa.
★ With a wide operating temperature range from -40℃ to +80℃, this cab tilt cylinder provides dependable performance in harsh environments, making it ideal for OEM replacement or fleet maintenance.

Product Feature

• EFFICIENT HYDRAULIC ACTUATION：
Converts hydraulic energy into mechanical energy to deliver smooth, linear reciprocating motion for reliable cab tilting operations.
• Function:
Provides maintenance clearance for cab servicing and offers self-locking and rapid return to the initial position.
• HIGH PRESSURE PERFORMANCE
Supports a rated system pressure of 28MPa, ensuring stable operation under heavy loads.
• APPLICATION:
Medium/heavy trucks, new-energy heavy-duty trucks, special commercial vehicles, and some construction machinery cab tilting systems.

Specification Parameter

TECHNICAL PARAMETERS
Product Name	Cab Tilt Hydraulic Cylinder
Product Model	5002020-70N-C00/C
Material	Steel
Type	Cab
Installation Location	Under Chassis
Structure	Load Bearing Body
Cylinder Stroke	554mm
Rated System Pressure	≤28MPa
Max Working Pressure	28MPa
Support Force	20000±100N
Pull-out Force Test	≥100 kN
Durability Test	4000 lift cycles with 2000kg load; no leakage or abnormalities
Standard Compliance	JA5002-D04-1
Operating Temperature	-40℃ ~ +80℃
Cylinder Tube Diameter	ID Φ45; OD Φ53
Piston Rod Diameter	35mm
